2007 Bell B40D 6×6 Articulated Dump Truck – 37 t Payload, 22.5 m³ Capacity

2007 Bell B40D 6×6 Articulated Dump Truck – 37 t Payload, 22.5 m³ Capacity

Product Overview

The 2007 Bell B40D 6×6 Articulated Dump Truck is engineered for high‑capacity hauling across rough terrain. With a robust Mercedes‑Benz OM501LA engine producing ~315 hp (235 kW) and delivering torque around 2,000 Nm, it supports a standard 37 t payload and a 22.5 m³ heaped dump body. Featuring six-wheel drive and Allison transmission, the B40D navigates rugged work sites at up to **52 km/h** top speed.

Key Features & Advantages 2007 Bell B40D 6×6 Articulated Dump Truck

• Power & Engine: Mercedes‑Benz OM501LA diesel engine develops ~315 hp (235 kW) with peak torque near 2,000 Nm.
• Payload & Body: Rated payload ~37 t, with 16.9 m³ struck / 22.5 m³ heaped capacity for robust hauling.
• Transmission & Speed: Allison HD4560 6‑speed forward and 1 reverse gear allows up to ~52 km/h, providing efficiency on road and site.
• Dump Performance: Dump angle ~70°, raise time approximately 13 seconds; lower in ~7.6 seconds.
• Durable Weights: Operating weight ~28,850 kg (empty), max gross ~66,850 kg.
• Fuel Efficiency: Large 484 L fuel tank and heavy-duty hydraulics for long cycles before refueling is needed.
• Operator Comfort: Spacious ROPS/FOPS cabin, solid-state electrical layout, comfortable visibility and controls.

Technical Specifications 2007 Bell B40D 6×6 Articulated Dump Truck

• Engine: Mercedes‑Benz OM501LA, ~235 kW (315 hp), ~2,000 Nm torque, 6-cylinder turbo diesel.
• Operating Weight: Empty ~28,850 kg, loaded gross ~66,851 kg.
• Payload Capacity: ~37,000 kg.
• Dump Body Volume: 16.9 m³ struck / 22.5 m³ heaped.
• Dump Angle & Cycle: 70° dump angle; lift time ~13 s; lower ~7.6 s.
• Dimensions: ~10.53 m long × 3.36 m wide × 3.82 m high.
• Maximum Speed: ~52 km/h.
• Tire Size: 29.5 R25 heavy-duty tyres.
• Fuel Tank Capacity: ~484 L.

Best Applications

• High-capacity material hauling in construction, mining, and earthmoving sites
• Large-scale infrastructure or civils projects over rough terrain
• Stockpile and bulk haul services in quarry operations
• Fleet operations needing a durable, dependable 6×6 ADT

User Feedback & Brand Insights

While Bell ADTs historically offer excellent haul capacity and speed, user forums frequently cite reliability concerns. As described on Reddit:
“As a Bell mechanic good luck… These always have low hours cause they are always downed.”
“They’re complete pieces of shit.”
These critiques reflect maintenance demands, parts availability, and electronic system familiarity.

However, many operators acknowledge Bell ADTs’ raw productivity when properly maintained—and note they haul faster fully loaded than some competitors.

Maintenance & Operational Tips

To ensure uptime, prioritize preventative maintenance of hydraulics, electronics, and articulation joints. Fuel filters, cooling system cleaning, and Allison transmission checks are essential. Verify local service and parts support before deployment, especially given potential lead times on OEM harnesses and sensors.

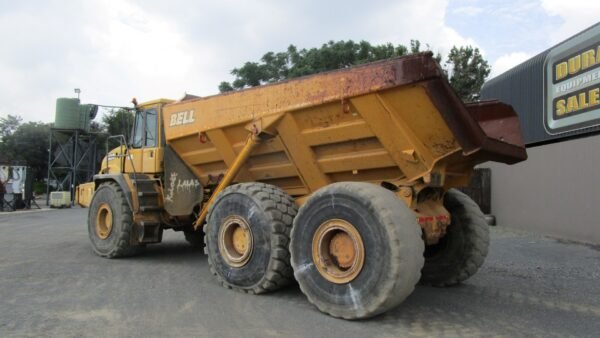

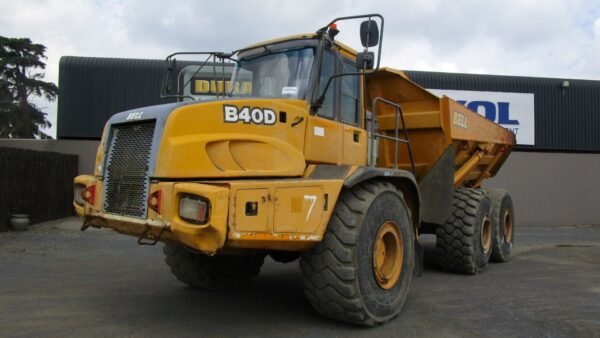

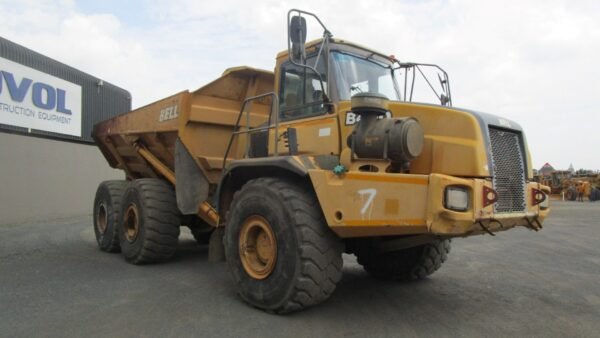

• Bell B40D 6×6 articulated dump truck side profile

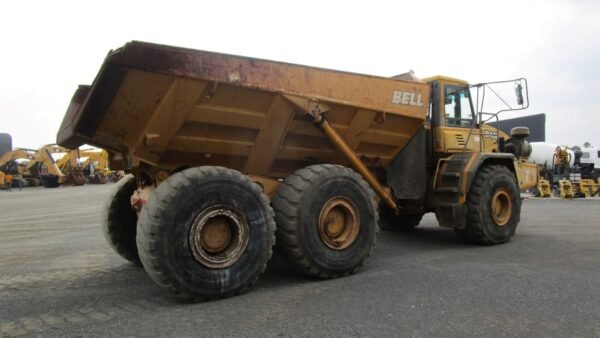

• Dump body raised showing mid-load articulation
• Cockpit view inside Bell B40D operator cabin controls
