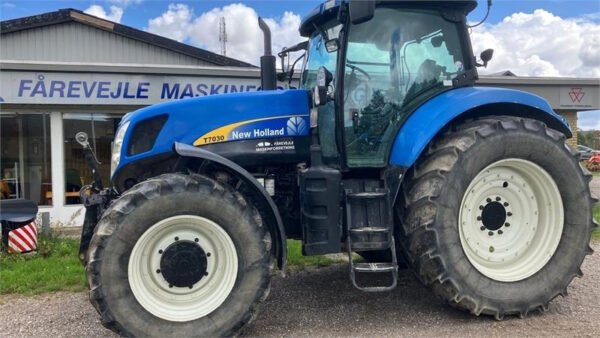

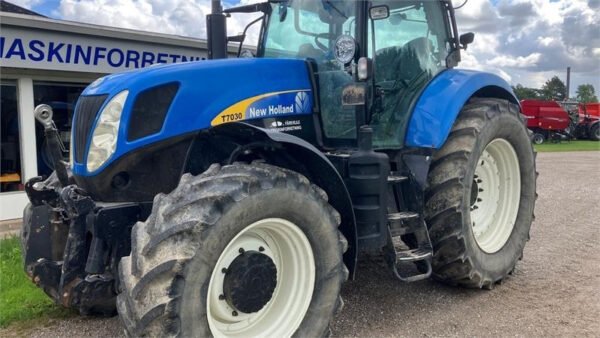

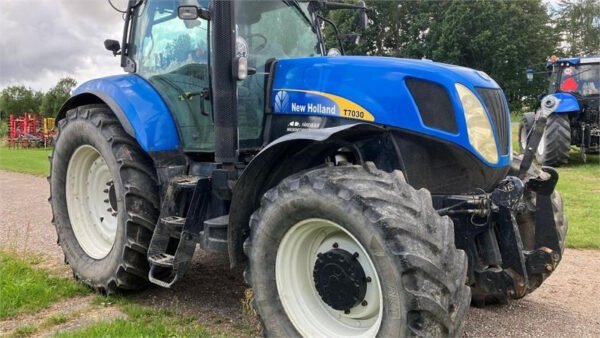

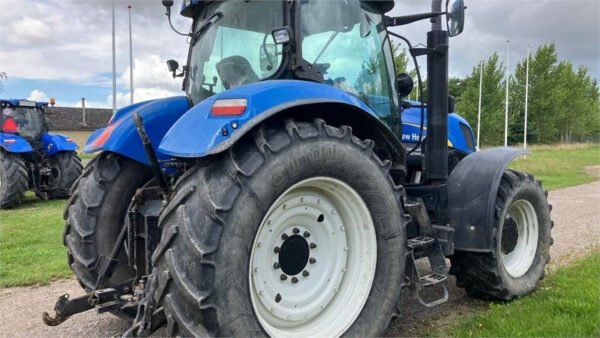

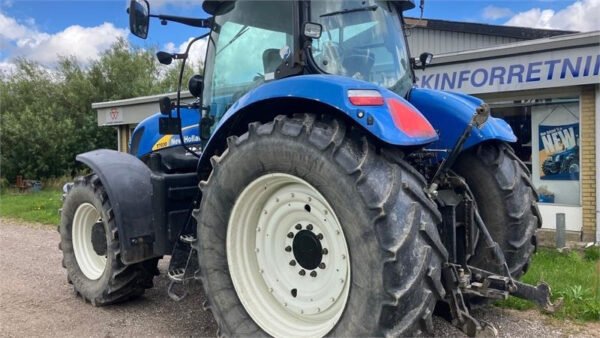

2007 New Holland T7030 – Rugged 156 HP 4WD Tractor Built for Versatility
The **New Holland T7030** is a high-performing 4-wheel drive (MFWD) tractor designed to meet demanding agricultural tasks, PTO implements, drawbar work, and road transport. Powered by a **FPT 6.7 L, 6-cylinder turbocharged/intercooled diesel engine**, it produces approx. **156 HP (≈ 116.3 kW)** rated, with a **claimed 135 HP** PTO output and strong tested PTO in many configurations. With closed-center load sensing hydraulics, strong rear hitch lift, multiple transmission choices, and optional high specification features, the T7030 delivers both power and flexibility.
Key Specifications.
2007 New Holland T7030 – Rugged 156 HP 4WD
- Engine & Power: 6.7-litre 6-cylinder diesel; ~156 HP rated, approx. 116.3 kW.
- PTO Power: Claimed ~135 HP (100.7 kW); tested PTO values higher in some cases. Rear independent PTO with speeds 540 / 1000 rpm.
- Transmission Options: Full power-shift (e.g. 18×6, 19×6), CVT (Auto Command), optional creeper / overdrive modes.
- Hydraulics: Closed-center load sensing system; standard pump flow ~32 gpm (≈ 121.1 l/min), optional “Mega Flow” up to ~39.6 gpm (≈ 149.9 l/min); total flows up to ~49-56 gpm depending on configuration. Rear valves = 3-5.

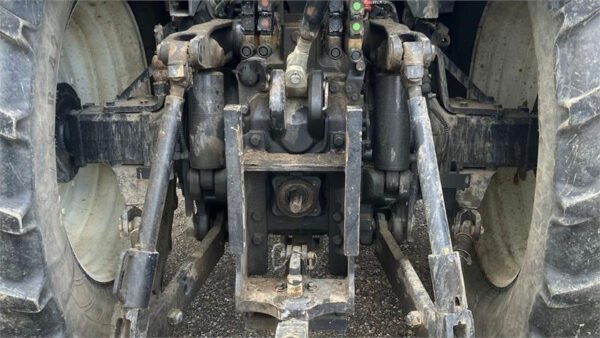

- Rear Hitch Lift: At the ends ~19,060 lbs (~8,645 kg); at 24″ (≈ 610 mm) behind link ends ~12,787 lbs (~5,800 kg).
- Fuel / Hydraulic Reservoir Capacities: Fuel tank ~116.2 gallons (~440 litres), hydraulic oil ~100.3 litres for standard hydraulic system.
- Dimensions / Weight: Wheelbase ~113.5 in (≈ 288 cm) standard; width ~91.9 in (≈ 233 cm); height to cab roof ≈ 119.7 in (≈ 304 cm); operating weight ~15,700-17,700 lb (≈ 7,100-8,040 kg) depending on spec.
- Drive / Axles: 4WD MFWD; optional TerraGlide or Super Steer front axles for better ride / maneuverability. Differential locks (rear), wet-disc brakes, hydrostatic power steering.
Why It’s a Strong Choice.
2007 New Holland T7030 – Rugged 156 HP 4WD
- Balanced Power & PTO Capacity: The T7030 delivers solid PTO power useful for large implements, balers, spreaders, and PTO-driven attachments.
- Hydraulic Versatility: With good flow and multiple rear valves, it can support several hydraulically-driven tools simultaneously.
- Transmission Flexibility: Multiple choices allow matching operator preferences and job demands—power shift for field / loader work, CVT for smoother transport.
- Strong rear hitch lift: Near-top lifter capacity for its class offers capability with heavy implements.
- Comfort & Front Axle Options: Optional front-axle enhancements and cab comfort features improve operator experience and usage efficiency.
Typical Applications & Best Uses. 2007 New Holland T7030 – Rugged 156 HP 4WD
- Large implement field work: ploughing, seeding, large cultivators, discing.
- PTO-intensive tasks: balers, mowers, sprayers, PTO pumps etc.
- Transport / haulage between fields or farm and market (when equipped with road-speed gearing or CVT).
- Loader & yard work: bucket work, material handling especially with optional front loader or loader-ready front hitch.
- Mixed farm or contract work requiring a robust, high-horsepower, multi-task tractor.
Inspection / Pre-Purchase Checklist. 2007 New Holland T7030 – Rugged 156 HP 4WD

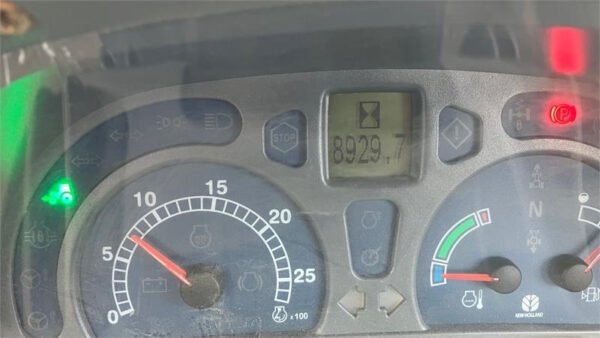

- Check engine hours & service history: turbo condition, injectors, cooling system especially.
- Transmission feel: shifting under load, CVT smoothness or power-shift responsiveness; check for slipping or delay.
- PTO functions: both 540 and 1000 rpm must engage properly; check clutch and PTO clutch operation.
- Hydraulic flow under load and all rear valves; test hitch lift at 24″; test front lift if fitted.
- Tire condition, matching sizes, especially rear tyres; large tyres are costly.
- Front axle / suspension / steering condition, especially if TerraGlide or Super Steer are fitted.

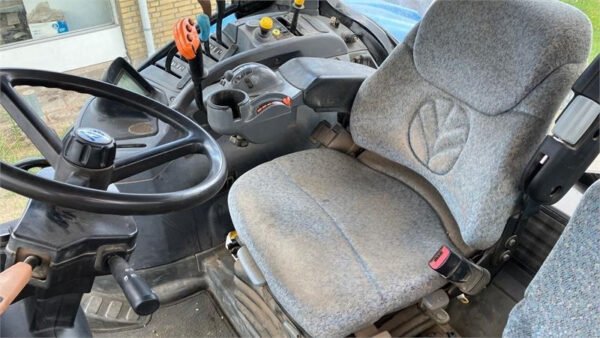

- Cab comfort: AC, seat condition, visibility, lights, mirrors etc. For many hours, comfort makes difference.
- Structural things: chassis, hitch, drawbar, PTO housing, any leaks; checking for wear in high stress parts.
Summary Table.
2007 New Holland T7030 – Rugged 156 HP 4WD
| Feature | Specification / Value |
|---|---|
| Model / Make | New Holland T7030 |
| Rated Engine Power | ~156 HP (~116.3 kW) |
| PTO Claimed Power | ~135 HP |
| Rear Hitch Lift (at ends) | ~8,645 kg |
| Pump Flow (Standard / Optional) | ~121.1 L/min standard; ~149.9 L/min optional |
| Fuel Tank Capacity | ~440 L standard |
| Operating Weight | ~7,100-8,040 kg depending on spec |
| Wheelbase | ~2.88 m (standard) / ~2.97 m (Super Steer) |
| Hydraulic Valve Count | 3-5 rear valves |
Conclusion – High Capacity Tractor for Demand Farming. 2007 New Holland T7030 – Rugged 156 HP 4WD. Order Here
When well maintained, the **New Holland T7030** provides serious capability for large farms, contractors, or operations where PTO, hitch lift, hydraulic capacity, and transport speed matter. If the unit you’re assessing has good history and spec, it will likely deliver strong service. Consider tires, transmission option, and any optional hydraulic/axle enhancements when comparing value.
