2008 Claas Ares 697 – Powerful 4WD Row-Crop Workhorse
The **Claas Ares 697**, part of the Ares 600 Series (2005-2008), offers strong performance in the ~130-150 HP class. Equipped with a **John Deere 6.8 litre 6-cylinder turbocharged diesel–engine**, this tractor delivers **138.1 HP (≈103.0 kW) net**, with a peak output of ~147 HP (≈109.6 kW). With 4-wheel drive (MFWD), a 24 forward × 24 reverse power shuttle transmission, independent rear PTO (540/1000 rpm), and generous hydraulic capacity, it is suited for drawbar, PTO, loader, and field operations that demand reliable output.
Key Specifications.
2008 Claas Ares 697 – Powerful 4WD
- Engine & Power: John Deere 6.8 L 6-cylinder turbo diesel; net power ~138.1 HP / 103 kW; maximum approx. 147 HP / 109.6 kW. Rated RPM ~2,200.
- Torque: ~588 Nm (≈ 433.7 lb-ft) at ~1,500 rpm.
- Transmission: 24 forward × 24 reverse power shuttle.
- Drive / Chassis: 4-wheel drive (MFWD); power steering; wet disc brakes. Cab is Claas ATZ with air conditioning and suspension.
- PTO: Independent rear PTO; speeds 540/1000 rpm; clutch is wet disc.
- Hydraulics: Open-center (with optional PFC) system; pump flow ≈ 60-110 L/min depending on variant.
- Fuel Tank Capacity: ~250 L (≈ 66 gallons / 249.8 L) for extended operating range.
- Dimensions & Weight: Operating weight ~5,630 kg; wheelbase 281 cm; length ~516 cm; height ~300 cm. Standard tyres: front ~14.9R28; rear ~20.8R38. Maximum permitted weight ~9,249 kg.
- Transport Speed: Max road speed ~40 km/h.
Why Buyers Choose the Ares 697.
2008 Claas Ares 697 – Powerful 4WD
- Balanced Power & Torque: Enough HP to handle large implements and PTO work without moving into overly large, expensive machines.
- 24/24 Shuttle Transmission: Offers flexibility – ideal for yard work, field shifting and transport without constantly stopping to change gears.
- Strong PTO & Hydraulics: Independent rear PTO and good hydraulic flow make it capable of various attachments & PTO-driven implements.
- Comfort Features: ATZ cab with suspension, air conditioning – improves operator comfort over long days. Wet disc brakes add to safety and control.
- Durability: Solid build, well-proven engine, simple but effective driveline, relatively heavy permitted weights give stability.
Best Use Cases & Applications.
2008 Claas Ares 697 – Powerful 4WD
- Row-crop work: planting, cultivating, spraying with medium to large implements.
- PTO-driven tasks: forage mowers, rotary cutters, balers etc.
- Loader or yard work: material handling, feed, hay etc.
- Drawbar work: ploughing, discing, towing trailers or spreaders.
- Transport between fields / yards – moderate road speed helps if distances aren’t large.
Pre-Purchase & Inspection Checklist.
2008 Claas Ares 697 – Powerful 4WD
- Check overall engine hours & maintenance history, especially injectors, turbo, cooling system.
- Test transmission under load; ensure the power shuttle is responsive, clutch is good, no slipping.
- Hydraulic system: test remotes, lift units under load, check pump output.
- PTO function 540 & 1000 rpm; make sure engagement is smooth.

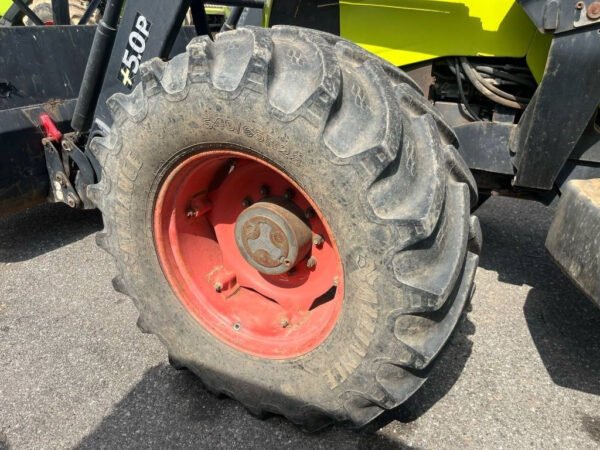

- Tyre condition: matching rear & front, sufficient tread, no damage. Also check rim integrity.
- Cab comfort & condition: AC, seat, suspension, visibility, safety features. Cab windows, seals, lights etc.
- Brakes & steering: wet disc brakes should be effective. Four-wheel drive operation should be checked if used.
- Structural condition: frame, lift arms, hitch, drawbar, fluid / hydraulic seals.
Summary Table.
2008 Claas Ares 697 – Powerful 4WD
| Feature | Specification / Value |
|---|---|
| Make / Model | Claas Ares 697 |
| Net Engine Power | 138.1 HP / 103.0 kW |
| Max / Peak Power | ≈ 147 HP / 109.6 kW |
| PTO Speeds | 540 / 1000 rpm |
| Transmission | 24F × 24R power shuttle |
| Operating Weight | ≈ 5,630 kg |
| Standard Tyres | Front 14.9R28; Rear 20.8R38 |
| Fuel Tank | ≈ 250 L |
| Wheelbase / Length / Height | ≈ 281 / 516 / 300 cm |
Conclusion – Strong Value Mid-High Class Tractor.
2008 Claas Ares 697 – Powerful 4WD
The **Claas Ares 697** offers excellent capability in the ~140 HP category—good for farms needing a workhorse combining PTO, drawbar, and loader capability without going into giant-tractor territory. If the specific unit is in good mechanical condition, with decent tyres and service history, it provides solid value. When purchasing, ensure you verify the wear items, PTO/hydraulic health, and condition of cab & transmission for best return on investment. Order Here.
