2010 Massey Ferguson 5470 – 125-Horsepower Utility Power & Versatility
The **Massey Ferguson 5470**, part of the MF-5400 Series, offers dependable utility and solid performance. With a 125-HP / 93.2 kW diesel engine (Sisu 4.4 L 4-cylinder turbo-intercooled), strong PTO, and 16 forward × 16 reverse gearbox, this tractor is built to tackle loader work, drawbar & PTO-driven implements, general field tasks, and utility farm jobs. Available in both 2WD and 4WD (MFWD) options, with a wide range of hydraulic valve counts (2-5), lift capacities, and optional fuel tank configurations, the MF 5470 remains a popular, proven choice for farmers who need rugged reliability.
Key Specifications.
2010 Massey Ferguson 5470
- Engine / Power: 125 HP / 93.2 kW. Sisu 4.4-L turbo-intercooled 4-cylinder diesel.
- Transmission: 16 forward × 16 reverse. Power-shift/Dyna-4 style; both 2WD & 4WD versions available.
- Drive Type: 2WD or MFWD (4WD) configurations.
- PTO: Independent rear PTO, standard 540 / 1000 rpm (with economy / optional variants depending on model).
- Lift / Hitch Capacity: Rear 3-point hitch Type II. Lift at 24″ (~610 mm) ≈ 3,175 kg (7,000 lbs).
- Hydraulic System: Open-center standard; closed-center optional. Valve count 2-5 depending on spec. Flow in open-center ≈ 56.8 L/min; combined flows up to ~131.7 L/min in higher spec settings.
- Fuel Tank Capacity: Standard ~143.8 L; optional larger tanks (≈ 208.2 L) in some variants.
- Dimensions & Weight:
- Wheelbase ~266 cm; length ~435 cm.
- Operating weight (2WD) ~4,329 kg; (4WD) ~4,710 kg.
- Tire sizes standard: front 14.9R28; rear 18.4R38.
- Travel / Road Speed: Up to ~40 km/h in many spec variants.
Why This Model Excels.
2010 Massey Ferguson 5470
- Balanced Performance: 125 HP is sufficient for typical loader, PTO, and drawbar workloads without overspending on fuel or maintenance.
- Flexible Configuration: Offers both 2WD and 4WD; multiple speed / valve options; good option for varied terrain & usage.
- Strong PTO & Hitch Lift: Lift capacity plus reliable PTO make it useful with a range of mounted or trailed implements.
- Proven Reliability: The MF 5470 is well understood by operators; parts & service knowledge widespread.
- Good Specifications Relative to Size: Compact enough for maneuvering; strong enough for heavier tasks.
Applications & Best Use Cases.
2010 Massey Ferguson 5470
- Loader work: silage, feed, bulk material handling.
- PTO-driven implements: mowers, balers, cutters, small power takeoff devices.
- Drawbar & pulling tasks: trailers, small disc harrows, seeders.
- General farm utility: fencing, yard work, maintenance tasks.
- Transport between fields, especially if distance moderate and road speed ~40 km/h useful.
Pre-Purchase / Inspection Checklist.
2010 Massey Ferguson 5470
- Engine hours & maintenance history – especially turbo, injectors, fuel system.
- Transmission performance under load – check shifting smoothness and response.
- PTO operation – ensure rear PTO works well at both 540 & 1000 rpm.
- Hydraulic responsiveness – test remotes and hitch under actual load; check for leaks.
- Tire condition – matching set, tread depth, sidewalls, rims. Big repair/replacement cost on big tyres.

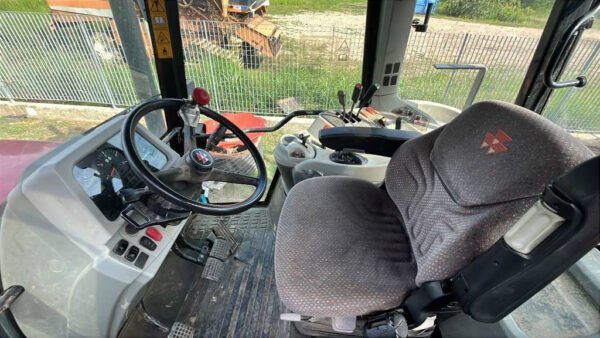

- Cab condition & comforts – seat, visibility, controls, lights. Operator comfort adds value.
- Structural condition – frame, hitch, drawbar, linkage, welds, signs of previous damage.
- Fuel system – tank leaks, filters, possible rust or water in fuel. ﹘ especially if machine stored outside.
Summary Table.
2010 Massey Ferguson 5470
| Feature | Specification / Value |
|---|---|
| Make / Model | Massey Ferguson 5470 |
| Engine Power | 125 HP / 93.2 kW |
| Transmission | 16F × 16R |
| Drive Type | 2WD or 4WD |
| PTO Speeds | 540 / 1000 rpm |
| Lift Capacity @ 24″ | ~3,175 kg |
| Hydraulic Flow (Typical / Max) | ~56.8 L/min in open-center; up to ~131.7 L/min combined in higher spec / closed-center settings |
| Fuel Capacity | ≈ 143.8 L – optional ~208.2 L |
| Operating Weight | ~4,329-4,710 kg depending on drive type |
| Tire Sizes (Standard) | Front 14.9R28; Rear 18.4R38 |
| Travel Speed | ≈ 40 km/h |
Conclusion – Solid Utility Tractor with Wide Use Case.
2010 Massey Ferguson 5470
The **Massey Ferguson 5470** offers excellent versatility in the ~125 HP class. If the specific unit is well maintained, has matching tyres, good PTO / hydraulic operation, it can serve well across loader, PTO, drawbar & transport tasks. It’s especially useful for farms that need power without going into high horsepower cost overheads. Be sure to check condition, hours, and attachments to get good value. Order Here.
