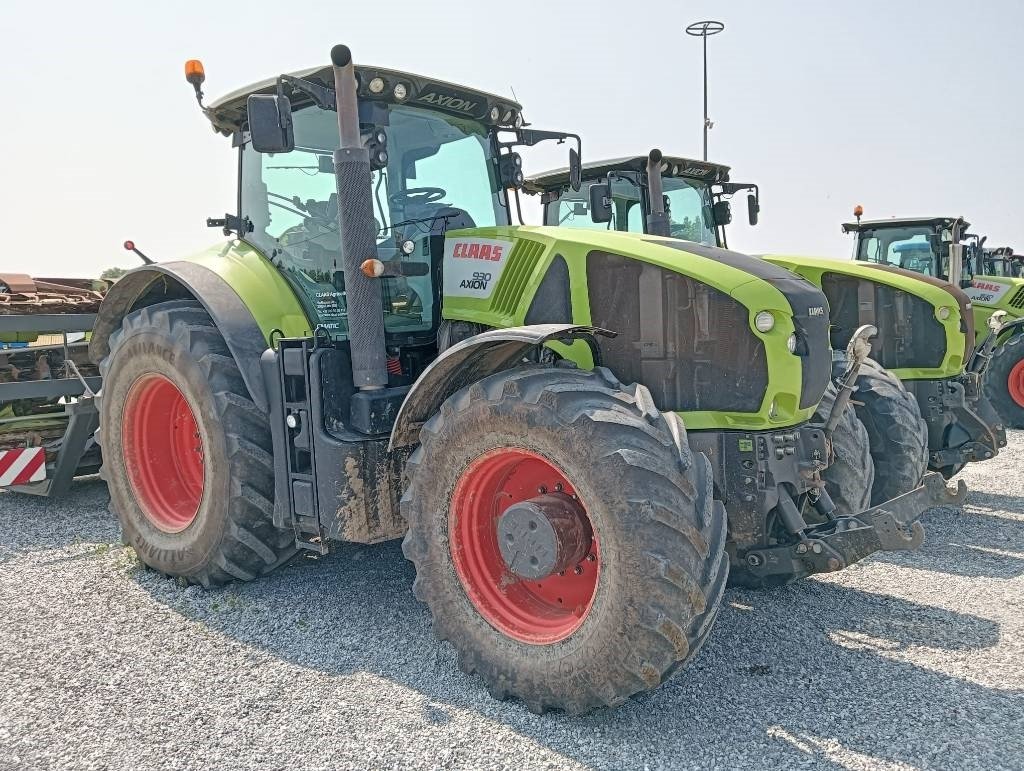

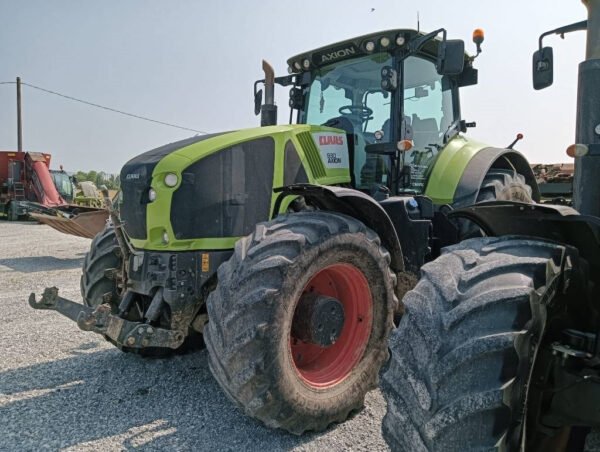

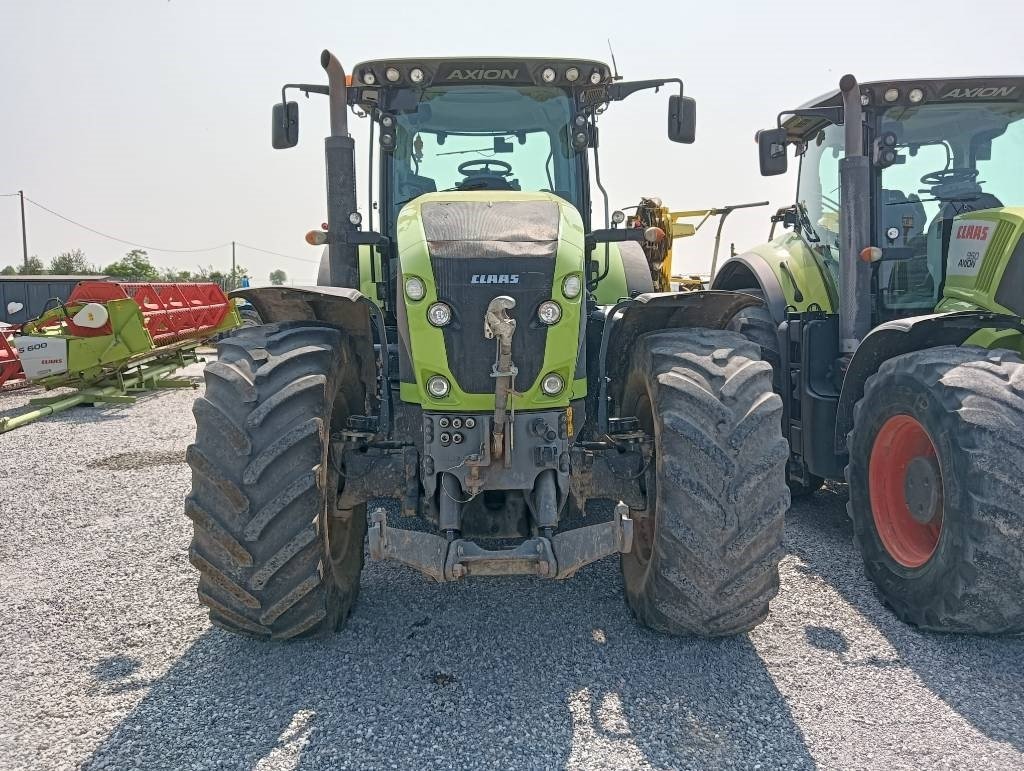

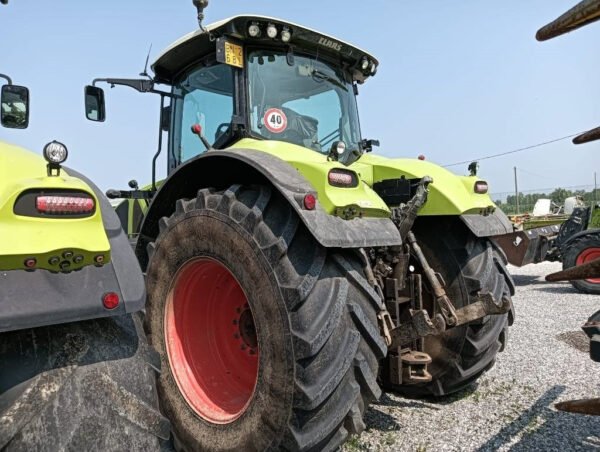

2014 Claas Axion 930 CMATIC – Ultra-Power CVT Heavy Work Capability
The **Claas Axion 930 CMATIC** is built for the largest, most demanding agricultural operations. With a 6-cylinder FPT 8.7-litre engine producing **~347.3‐355 HP (≈ 259-260 kW gross)**, massive torque of **~1,450 Nm** (depending on spec), and paired with the **CMATIC continuously variable transmission**, this tractor delivers seamless power whether you’re hauling, PTO-driven, or doing heavy tillage. Add in a rear hitch lift close to **7,520 kg**, and hydraulics rated at **≈ 150-220 L/min**, and you’ve got a machine that can take on the toughest tasks with comfort and efficiency.
Key Factory Specifications.
2014 Claas Axion 930 CMATIC
- Engine & Power: FPT 6-cylinder, 8.7 L displacement; rated power ~347.3 HP (259 kW), with versions quoted at up to ~355 HP in certain markets.
- Maximum Torque: ~1,450 Nm at ~1,600 rpm.
- Transmission: CMATIC CVT (continuously variable), enabling infinite forward/reverse, with high mechanical efficiency especially in common working speeds (≈ 7-15 km/h) and good road‐speed performance (≈ 50 km/h) where applicable.
- Hydraulics: Load-sensing system; factory pump flow ~150 L/min standard, with optional higher capacity (~220 L/min) in higher spec machines.
- PTO Options: Rear PTO is independent, 1000 rpm standard; 540E/1000E options in many units; front PTO 1000 rpm is sometimes fitted depending on spec.
- Rear Hitch / Lift Capacity: At end of lift links ~7,520 kg (≈ 16,579 lbs) in typical configuration.
- Dimensions & Weight: Base weight ~12,840 kg; overall length ~5.59 m; wheelbase ~3.14 m; standard tyres front ~620/75 R30, rear ~710/85 R38 or similar.
Why Operators Choose the Axion 930 CMATIC.
2014 Claas Axion 930 CMATIC
- Continuous Torque & Efficiency: Low-revving high torque engine gives pull without overworking, combined with CVT to maintain efficiency.
- Hydraulic & Hitch Strength: Lift & hydraulic capacity sufficient for large implements; strong rear linkage means less strain on attachments.
- Versatility & Road-Speed: Likely 50 km/h road speed in many markets; useful for transport and movement.
- Operator Comfort & Control: Mechanical cab suspension, large tyres, good vision, advanced control interfaces (e.g. CEBIS, Motion) in many variants.
Applications & Ideal Use Cases.
2014 Claas Axion 930 CMATIC
- Heavy PTO‐work: balers, harvesters, rotary mowing etc.
- Tillage and soil preparation with large implements.
- Transport & hauling – trailers, silage, etc.
- Mixed farming / contracting where high horsepower & hydraulic capacity are needed.
- Loader work where front hydraulics or front linkage is fitted.
Pre-Purchase Checklist – What to Inspect.
2014 Claas Axion 930 CMATIC
- Actual engine hours & service / maintenance history (especially injectors, turbo, transmission service intervals).
- Transmission performance under load – CVT should shift smoothly, no slipping, overheating.

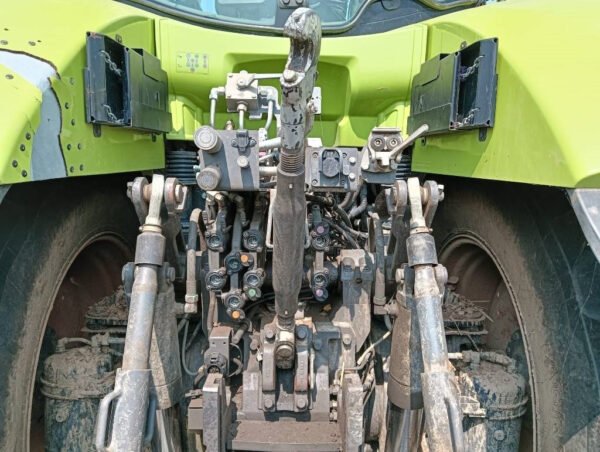

- PTO & hitch condition – check rear hitch, link ends, PTO engagement, optional front PTO if fitted.
- Hydraulic system – remote valves operation, leaks, responsiveness. Confirm actual L/min flow vs spec.

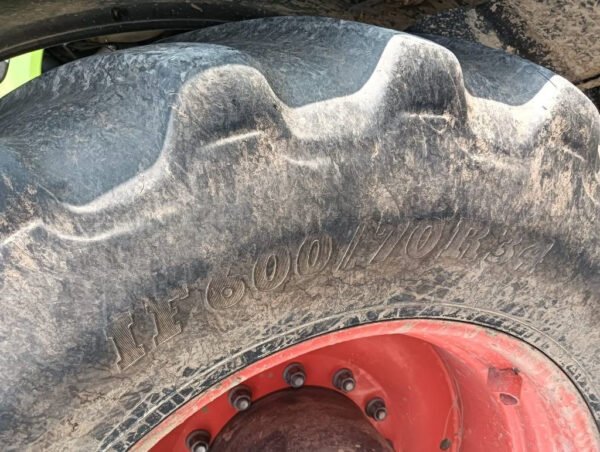

- Tire condition & matching sizes; front & rear tyres; rim integrity. Large tyres are expensive.
- Comfort and cab features – suspension, visibility, controls. Instruments like CEBIS; AC/heater.
- Structural condition – front axle if Proactive or equivalent, chassis integrity, drawbar, ballasts.
Summary Table.
2014 Claas Axion 930 CMATIC
| Feature | Specification / Range |
|---|---|
| Make / Model | Claas Axion 930 CMATIC |
| Rated Power | ~347-355 HP (≈ 259-260 kW) |
| Maximum Torque | ≈ 1,450 Nm |
| Transmission | CMATIC continuously variable |
| Hydraulic Flow | ≈ 150 L/min standard; optional up to ≈ 220 L/min |
| Rear Hitch Lift (Ends) | ≈ 7,520 kg |
| PTO Speeds | 1000 rpm standard (540E / 1000E etc optional) |
| Weight / Size | ≈ 12,840 kg operating weight; ~5.59 m length; ~3.14 m wheelbase |
| Max Road Speed | ≈ 50 km/h in many versions |
Conclusion – Elite Power & Capability for Large Farms / Contracting.
2014 Claas Axion 930 CMATIC
If you seek a tractor that pairs enormous pulling power, high hydraulic & PTO reliability, advanced technology and road-speed performance, the **Claas Axion 930 CMATIC** is amongst the top contenders. Provided the unit is well maintained, tyres are in good shape and wear items checked, this model delivers heavy output, versatility and long service life. For large scale operations or contractors, this tractor is a premium investment that can pull its weight. Order Here.
