2015 JCB 432ZX Wheel Loader – Powerful 150 hp, 2.1 m³ Bucket, 12 t Class
Overview
The **2015 JCB 432ZX Wheel Loader**, equipped with a **Cummins 6BTA‑A 5.9 C–150C engine**, delivers **112 kW (150 hp)** and **650 Nm torque at 1500 rpm**, combining efficiency and power in a **12 t operating weight** package. Its **high-lift loader arm** and generous **2.1 m³ bucket** (standard) make it ideal for wagon loading, stockpiling, and general purpose loader applications.
Key Features & Benefits
- Engine & Power: Cummins turbodiesel delivers robust 150 hp and reliable torque via simple filtration for harsh environments.
- High‑Lift Arm & Bucket: Z-bar linkage delivers breakout force ~121 kN and efficient center-of-wagon dumping.
- Payload & Tipping Capacity: Full-turn tipping load normalised near **7 300 kg**, payload benchmark ~3 650 kg.
- Transmission & Hydraulics: ZF auto 4-speed power-shift with torque converter and steering priority hydraulics provide smooth drive and low-effort controls.
- Operator Comfort & Safety: ROPS/FOPS cab, excellent all-round visibility, servo controlled hydraulics, ergonomic access, optional air‑conditioning.
- Maintenance Efficiency: Gull-wing service doors, ground-level check points, long oil/filter intervals, simple cooling system access.
Technical Specifications
- Gross Power: 112 kW (150 hp) @ 2,200 rpm.
- Max Torque: 650 Nm @ 1,500 rpm.
- Operating Weight: ~12 100 kg.
- Bucket Capacity: Standard 2.1 m³ (range up to 3.1 m³).
- Tipping Load (Full Turn): ~7 300 kg.
- Dump Height: ~2,800 mm.
- Travel Speed: ~35.7 km/h.
- Dimensions (L×W×H): ~7,163 × 2,400 × 3,250 mm; turning radius outside ~5.7 m.
Ideal Applications
- Construction site loading and unloading
- Aggregate or batching plant operations
- Material stockpile management
- Transport yard wagon loading
User & Brand Insight
JCB’s global reputation is built on rugged design, excellent network support, and long-term reliability. With durability validated across environments from –20 °C to +50 °C, the Cummins-powered 432ZX stands as a dependable mid‑sized loader in global fleets.
Maintenance & Operational Advice
The 432ZX benefits from simple daily checks, gull-wing access to cooling and filter components, and extended oil-change intervals. Regular monitoring of loader linkage pins, cooling pack cleanliness, and fluid levels ensures sustained uptime. JCB LiveLink (if fitted) can monitor machine health and location remotely.

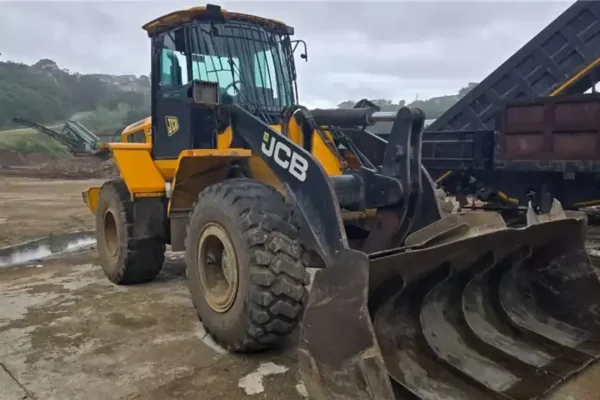

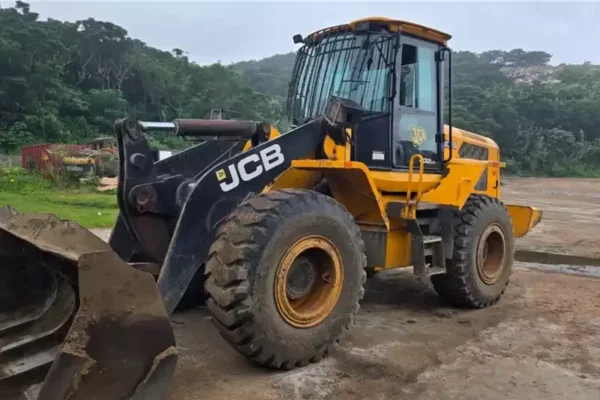

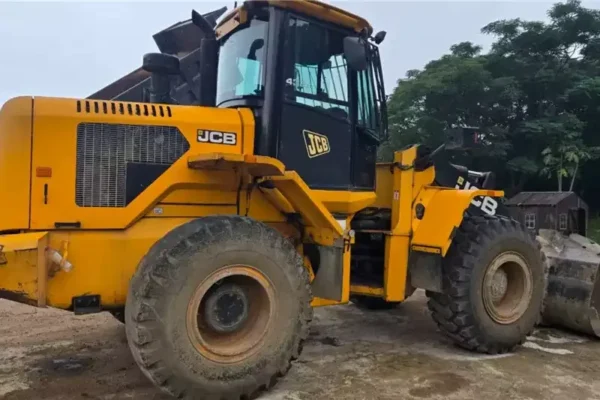

- JCB 432ZX wheel loader side view lifting bucket
- Cab interior view of JCB 432ZX with operator controls
- 432ZX loader unloading into truck at site
📞 Call to Action
Interested in a reliable 150 hp loader with excellent lift and payload capacity? Contact us today to request pricing, finance options, attachments, or to schedule a demonstration of the **JCB 432ZX Wheel Loader (2015 model)**.
