2023 New Holland T4.90 N (≈86 hp / 63 kW)

The 2023 New Holland T4.90 N offers 86 hp (63 kW at ISO TR14396), powered by a 3.4 L FPT F5C Tier 4B diesel engine—no DPF or regen required. Equipped with a 12×12 Shuttle Command or Powershift (max ~40 km/h), it features open‑center hydraulics (~64 L/min), rear hitch lift capacity ~3 334 kg (7 351 lb), and a narrow transport width ideal for orchards and compact utility work.

✅ Key Features & Benefits 2023 New Holland T4.90 N

Engine & Power: 3.4 L, 4‑cylinder FPT F5C Tier 4B diesel delivering 86 hp gross and rated 75 hp PTO.
Transmission: Choice of 12×12 mechanical or PowerShuttle with PowerClutch at up to ~40 km/h—ideal for frequent direction changes.
Hydraulics: Tandem gear pump system: implement flow ~64 L/min plus steering/service ~36 L/min (open‑center). Up to 3 rear SCVs, optional MegaFlow (~80 L/min).
Rear Hitch Lift Capacity: Standard lift ~3 334 kg at ball ends (24″).:
Compact Specialist Tractor: Narrow model (T4.90 N) with transport width ~1.23–1.54 m, wheelbase ~2.18 m, travel speed ~35–40 km/h. Excellent for orchards and vineyards.
Operator Comfort & Ergonomics: VisionView cab standard; optional ROPS. Balanced layout, power steering, CommandArc™ console.

📦 Technical Specifications 2023 New Holland T4.90 N

Engine Power (gross / PTO): 86 hp / ~75 hp (ISO TR14396).
Torque: ~351 Nm at 1 300 rpm; torque reserve ~34%.
Transmission: 12×12 shuttle or Powershift; creeper option available, top speed ~40 km/h.
Hydraulic Flow: ~64 L/min implement + ~36 L/min steering; MegaFlow up to ~80 L/min optional.
Rear Hitch Capacity: ~3 334 kg at ball ends with standard arms.
Size & Weight: Width ~1.23–1.54 m; wheelbase ~2.18 m; weight ~2 850 kg; travel speed ~35–40 km/h.
PTO: Rear 540 rpm standard; optional 540E or 1000 rpm.

👷 Ideal Applications

Vineyard and orchard operations requiring narrow width and high maneuverability
Loader and yard work where frequent direction changes are essential
Specialty farming with compact implements or inside crops
Estate management or utility tasks needing commodity tractor with strong lift capability
Typical resale pricing for T4.90 N 2023 models spans US $75,000–85,000 depending on spec and hours.

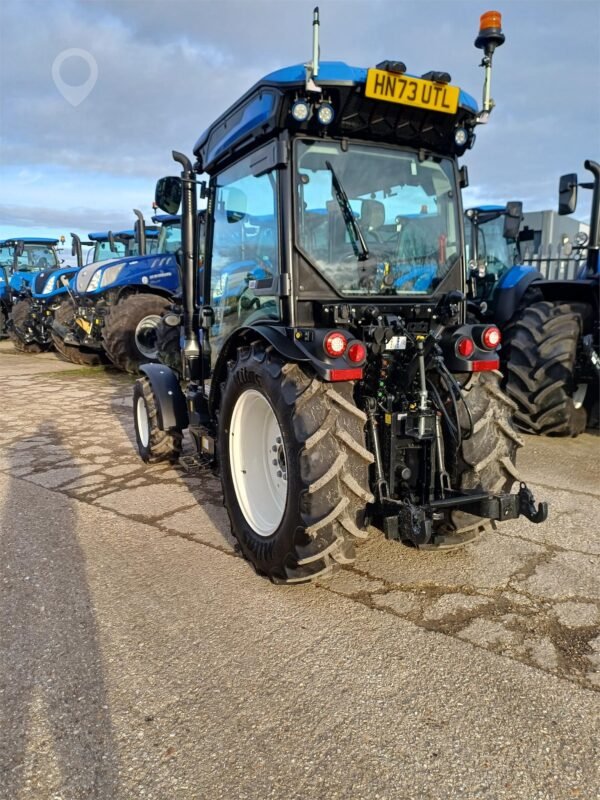

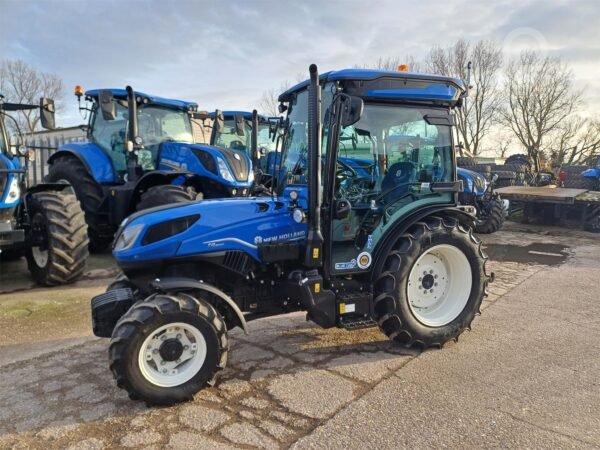

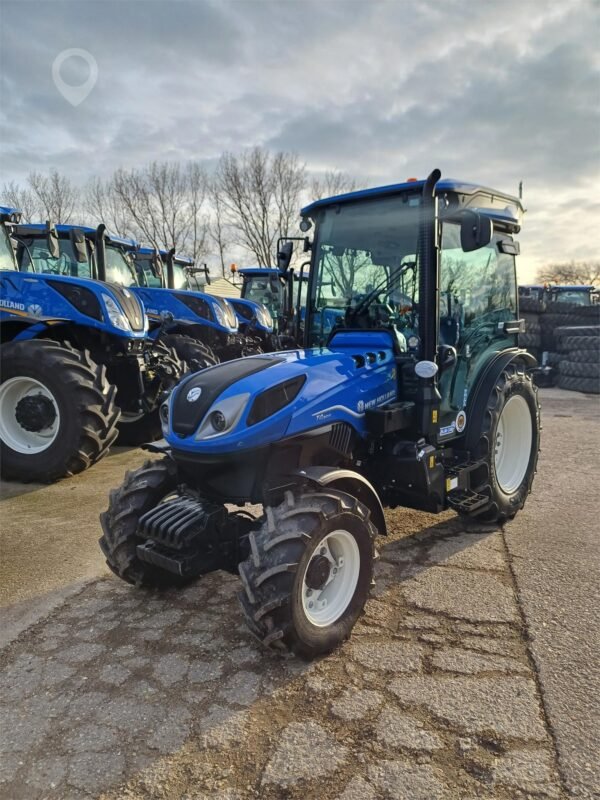

“2023 New Holland T4.90 N narrow orchard tractor side view”
“T4.90 N cab interior with CommandArc steering and control layout”
“New Holland T4.90 N compact 4WD tractor operating in orchard rows”
