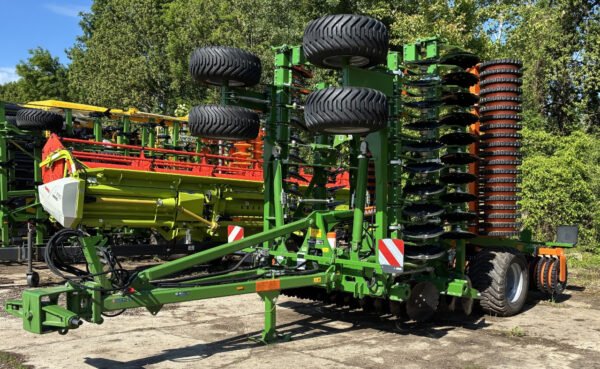

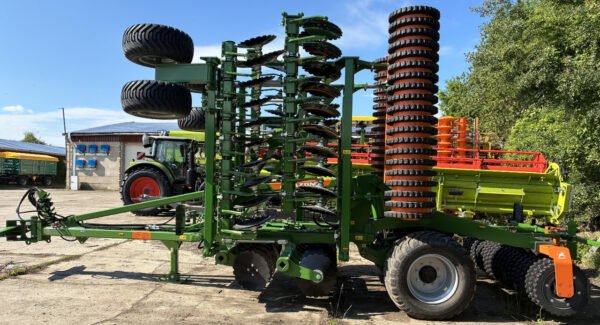

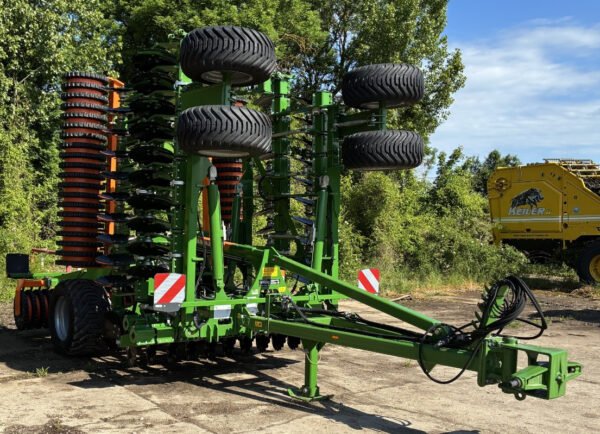

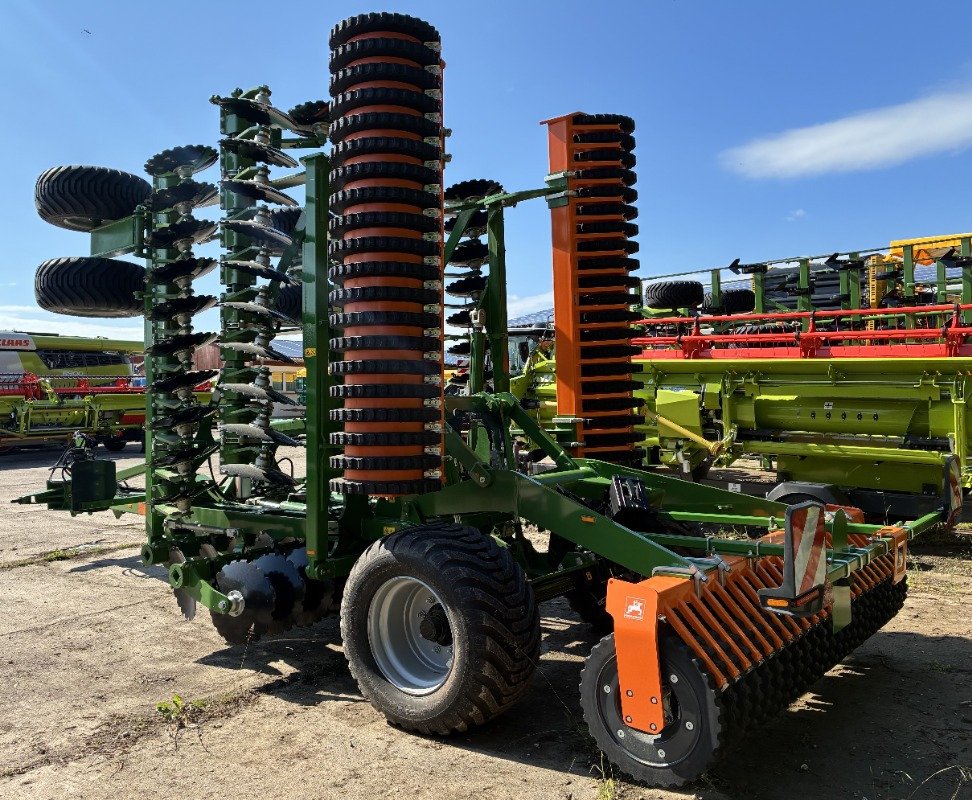

2025 Amazone Catros+ 8003-2TX Compact Disc Harrow – 8.0 m Soil Cultivator
The Amazone Catros+ 8003-2TX Disc Harrow, supplied by Machinery Depot Pro, is a high-performance, wide-width compact disc harrow designed for efficient soil mixing, stubble cultivation, residue incorporation and seedbed preparation on large farms or commercial fields.
Key Features.
2025 Amazone Catros+ 8003-2TX Compact Disc Harrow – 8.0 m Soil Cultivator
- Working width: 8.0 m — excellent coverage per pass, ideal for large acreage.

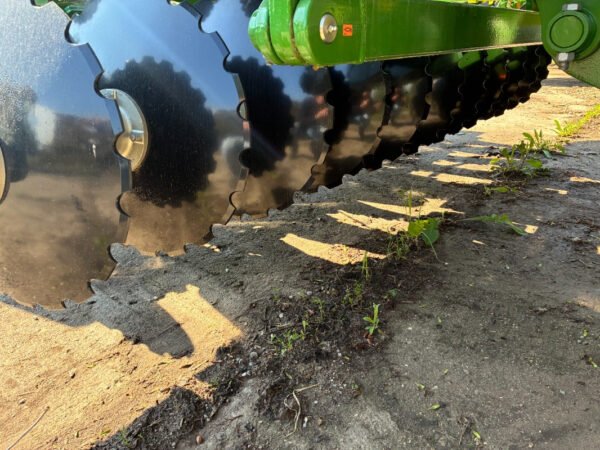

- Disc diameter: 510 mm (Catros+ standard) — for effective soil cutting and mixing.
- Hydraulic depth adjustment via the “Smart Frame System” — allows working depths from about 5 cm up to 14 cm depending on disc type and soil conditions.
- Individual disc suspension on sprung rubber buffer blocks — ensures excellent ground contour following and smooth travel even on uneven terrain.
- Maintenance-free disc bearings with face-seal lubrication and lifetime lubrication — minimal maintenance and long service life.

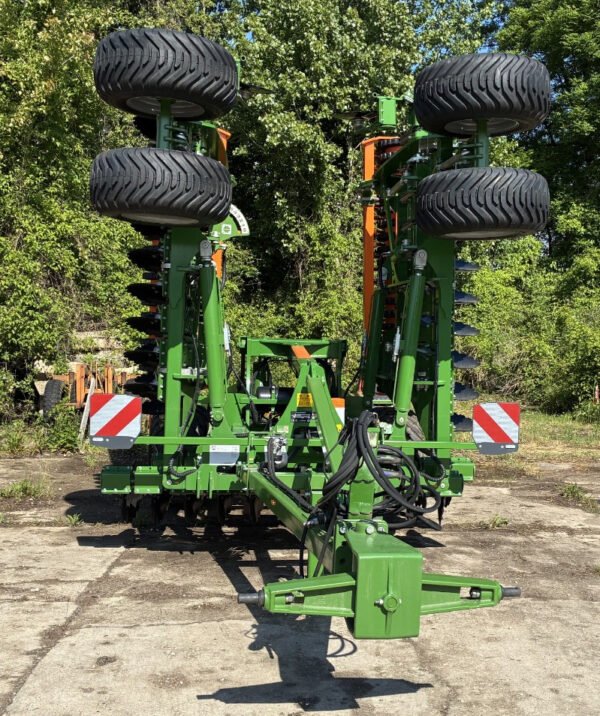

- Centre-running gear / trailed chassis configuration — offers good maneuverability and safe road transport despite large working width.

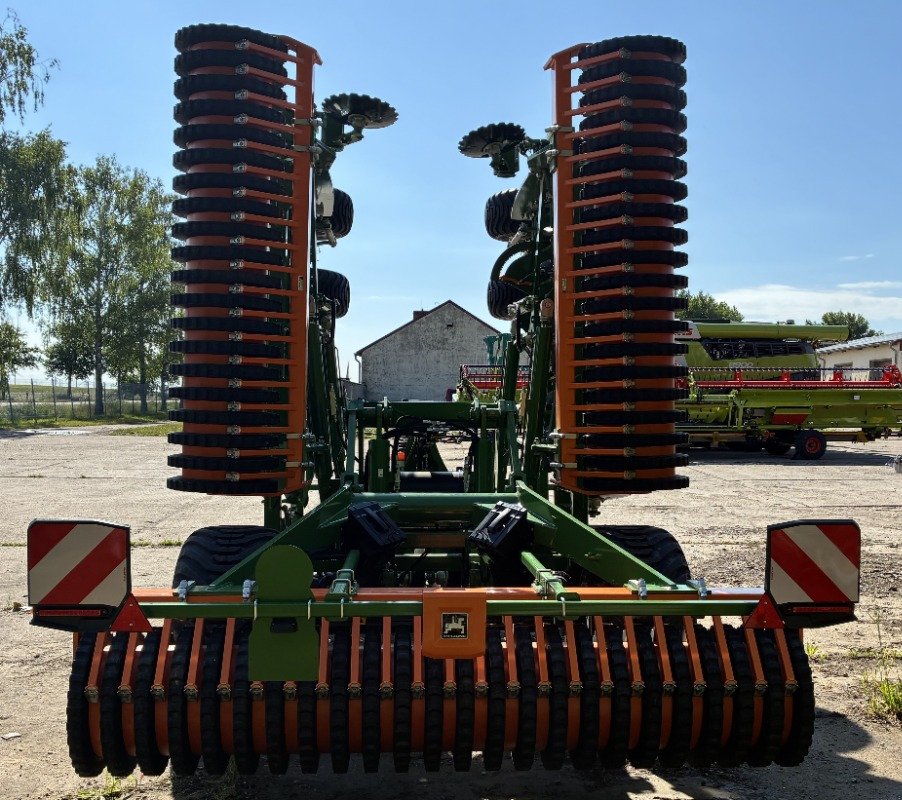

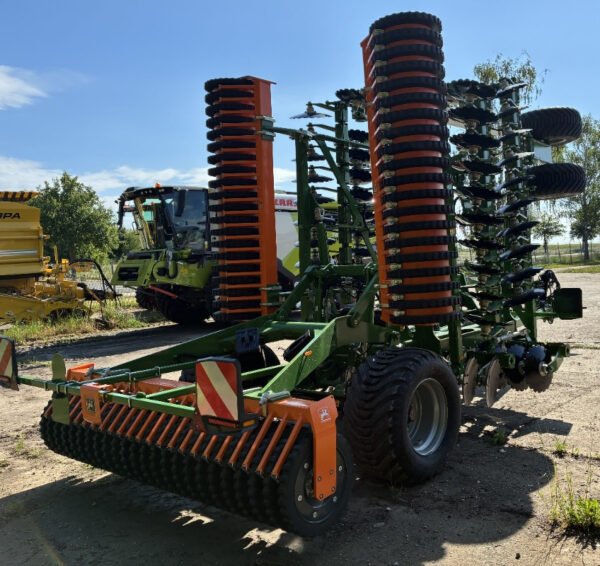

- Wide range of optional rear rollers and packers — for soil consolidation, seedbed finishing, and adapting to different soil types (light, medium, heavy).
- Optional pre-working tools (e.g. knife roller, front rollers, etc.) — for chopping crop residues, improving residue incorporation and preparing heavier soils.
Technical Specifications (Standard 8.0 m 8003-2TX.
2025 Amazone Catros+ 8003-2TX Compact Disc Harrow – 8.0 m Soil Cultivator
Model)
| Specification | Detail |
|---|---|
| Working Width | 8.0 m |
| Disc Diameter | 510 mm |
| Working Depth Range | 5 – 14 cm (depending on soil & disc type) |
| Disc Rows & Spacing | Two disc rows, 250 mm spacing within rows |
| Tractor Power Required | ~ 176 kW (~240 HP) typical for 8.0 m working width |
| Transport Width (folded) | ≈ 3.0 m (model dependent) |
| Suitable Soil & Use | Shallow to medium-depth tillage, stubble cultivation, residue mixing, seedbed preparation (light to medium soils) |
| Bearings & Suspension | Maintenance-free bearings, rubber buffer suspension for discs |
Benefits.
2025 Amazone Catros+ 8003-2TX Compact Disc Harrow – 8.0 m Soil Cultivator
- Large working width (8 m) — reduces passes and saves time and fuel on big fields.
- Effective soil and residue mixing — 510 mm discs and aggressive disc angle mix soil thoroughly and incorporate crop residues for improved soil health and seedbed readiness.
- Flexible working depth — adjustable from shallow tillage to deeper mixing (5–14 cm), making it versatile for different crops and soil conditions.
- Low maintenance — maintenance-free bearings and robust build reduce downtime and operational costs.
- Good transportability and maneuverability — centre-running gear and trailed chassis make road transport and field access easier despite its wide width.
- Optional rollers and packers — allows soil consolidation and seedbed finishing in one pass after discing, saving time and machinery wear.
- Residue management ready — optional pre-working tools and disc configuration enable effective handling of crop residue, ideal for no-till or reduced-till systems.
Applications.
2025 Amazone Catros+ 8003-2TX Compact Disc Harrow – 8.0 m Soil Cultivator
- Stubble cultivation and residue incorporation after harvest — maize, sunflower, grains, etc.
- Seedbed preparation — breaking clods, mixing organic residue, and preparing fine, even seedbeds for sowing.
- Shallow to medium-depth soil tillage for cereals, pastures, or cover crops — especially useful in moderate soils or when deep ploughing is not required.
- Large-scale farming operations requiring high output per pass — efficient for commercial agriculture and big acreage farms.
- Conservation tillage or reduced-till systems — as the disc harrow mixes residue without deep inversion, helping conserve moisture and soil structure.
Ordering & Supply.
2025 Amazone Catros+ 8003-2TX Compact Disc Harrow – 8.0 m Soil Cultivator
To order the Amazone Catros+ 8003-2TX Disc Harrow, contact Machinery Depot Pro. We will confirm stock availability, tractor compatibility (HP requirement), optional roller/packer or pre-working tool configurations, and arrange delivery and transport logistics based on your location.
Why Buy from Machinery Depot Pro?.
2025 Amazone Catros+ 8003-2TX Compact Disc Harrow – 8.0 m Soil Cultivator
Machinery Depot Pro, sources genuine Amazone agricultural implements, provides expert agronomic advice, competitive pricing, and full support — ideal for commercial farmers, contractors, or agribusinesses needing reliable, high-output equipment. Order Here
