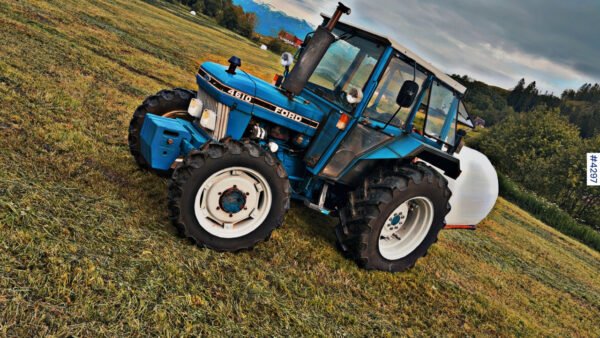

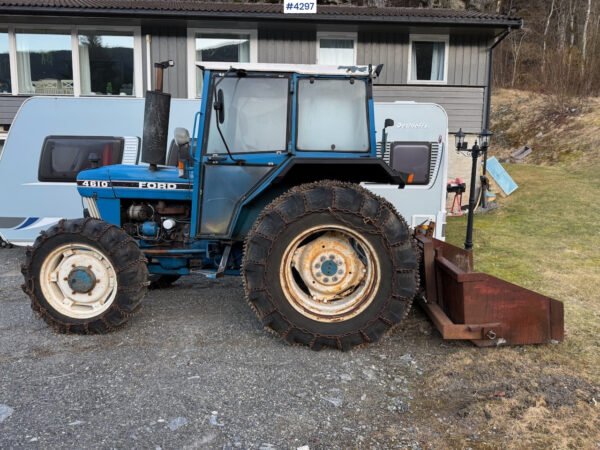

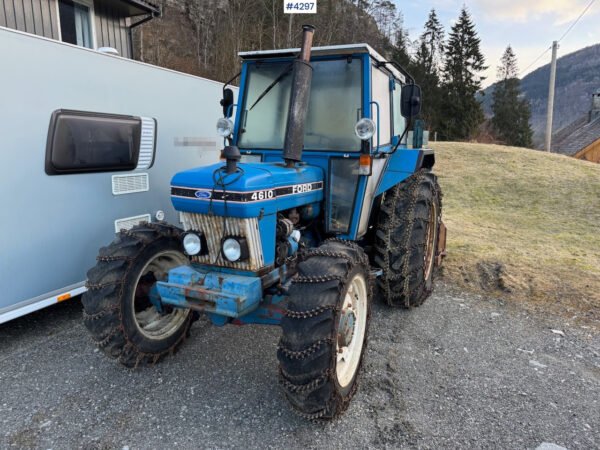

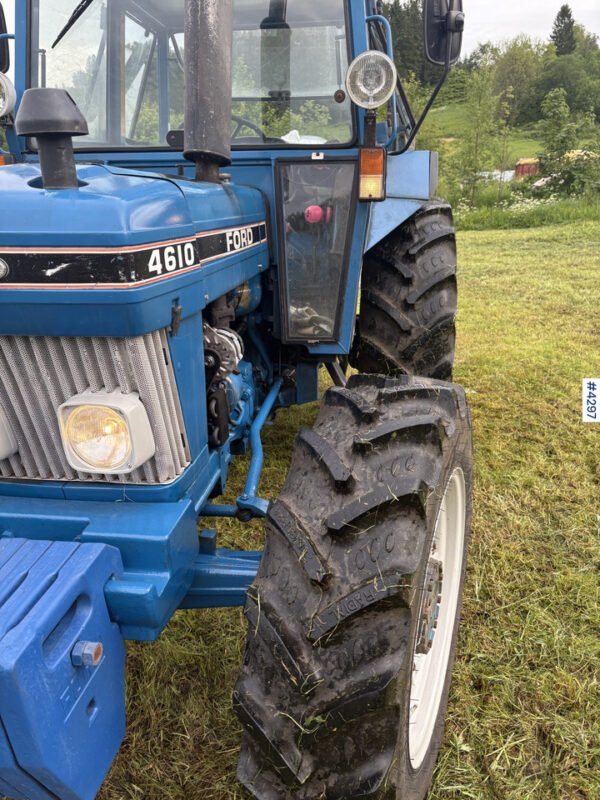

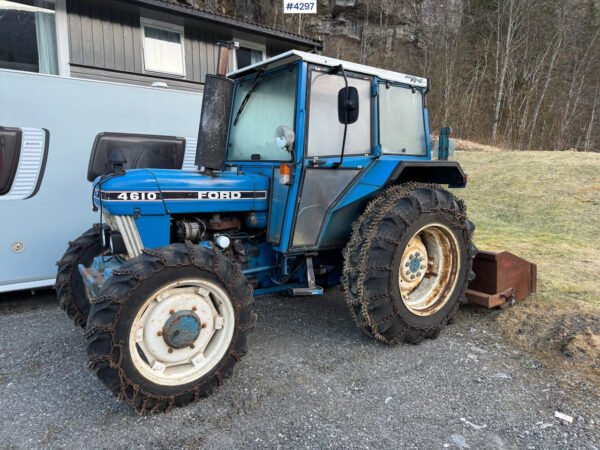

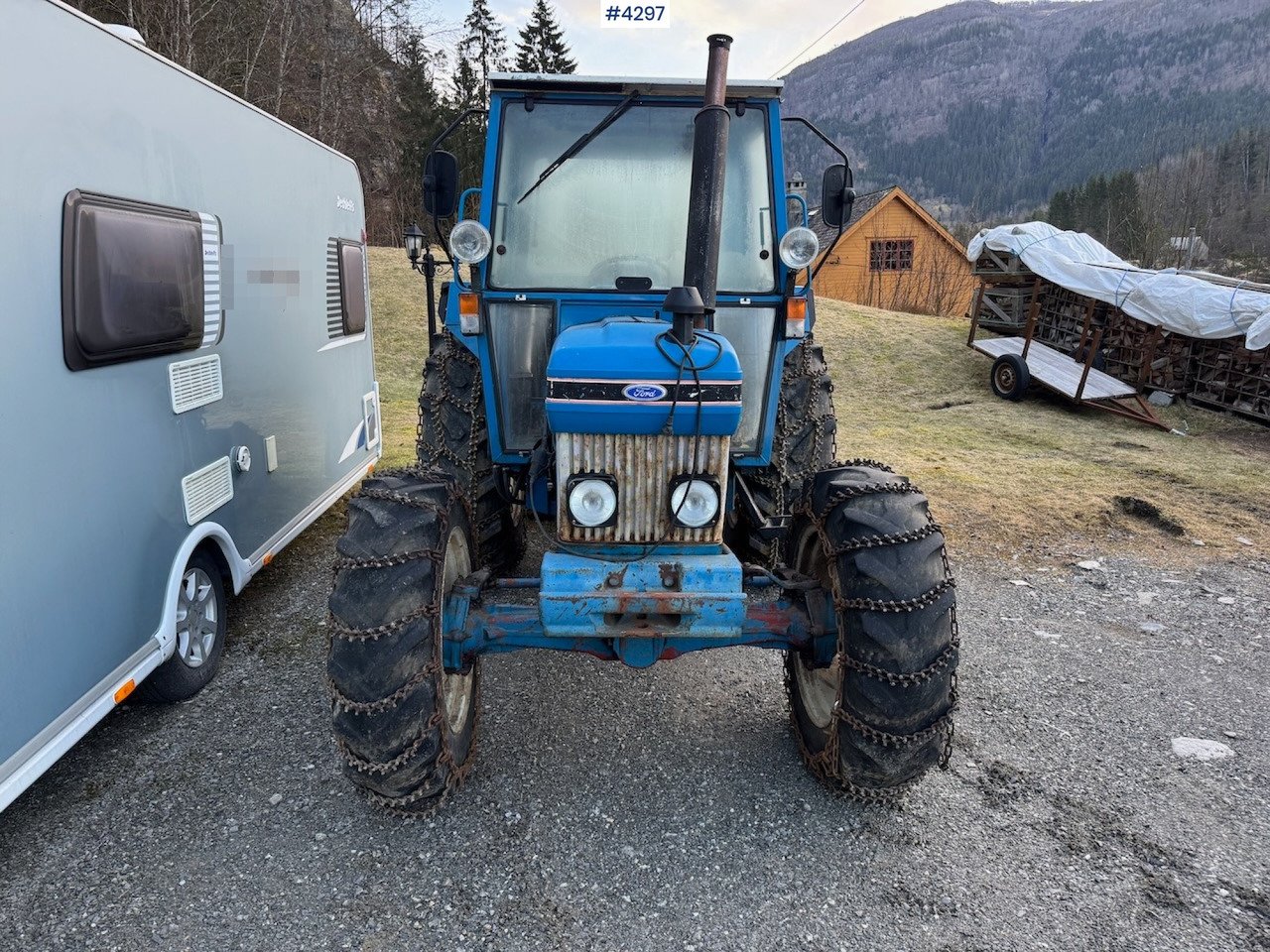

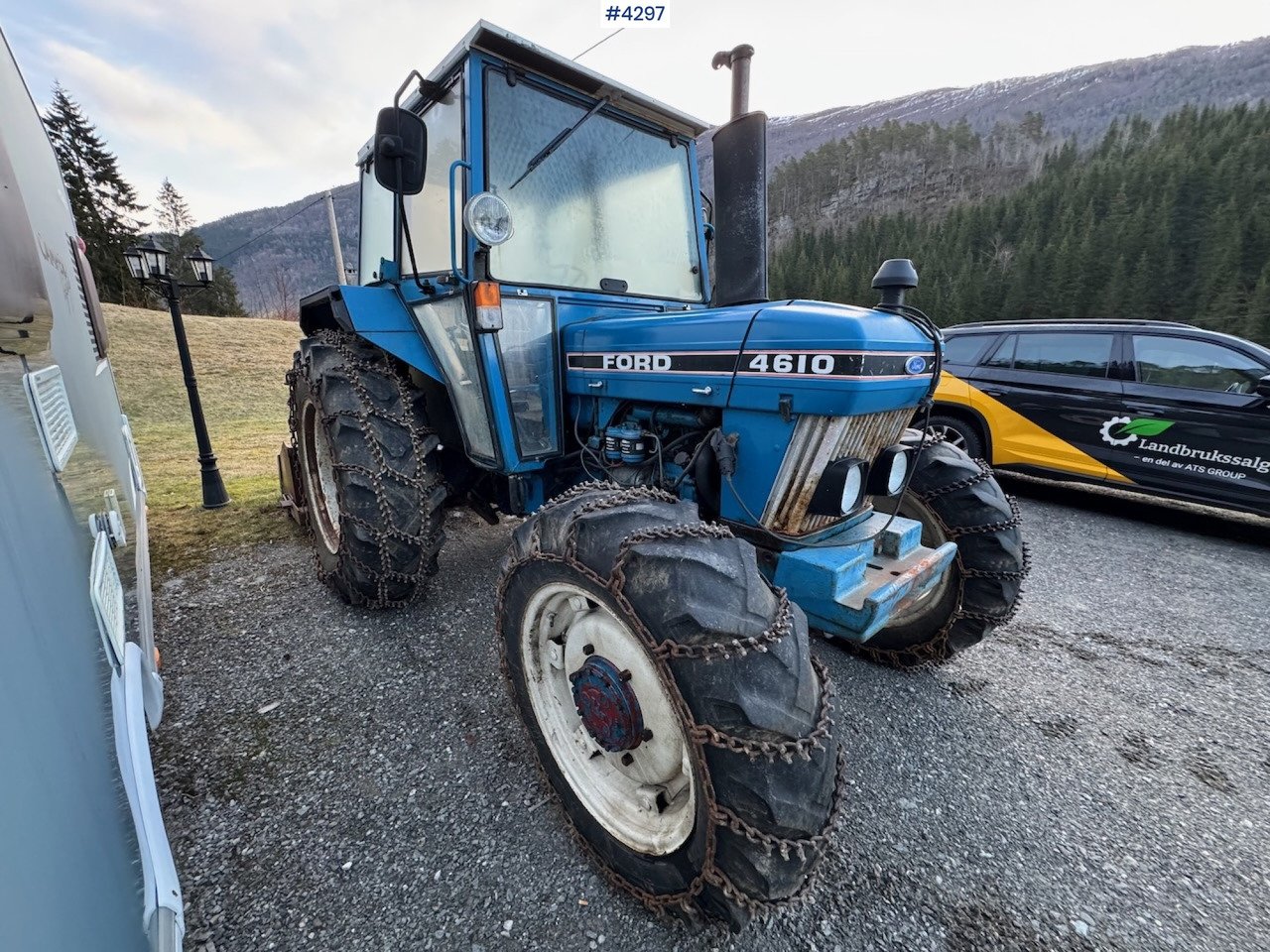

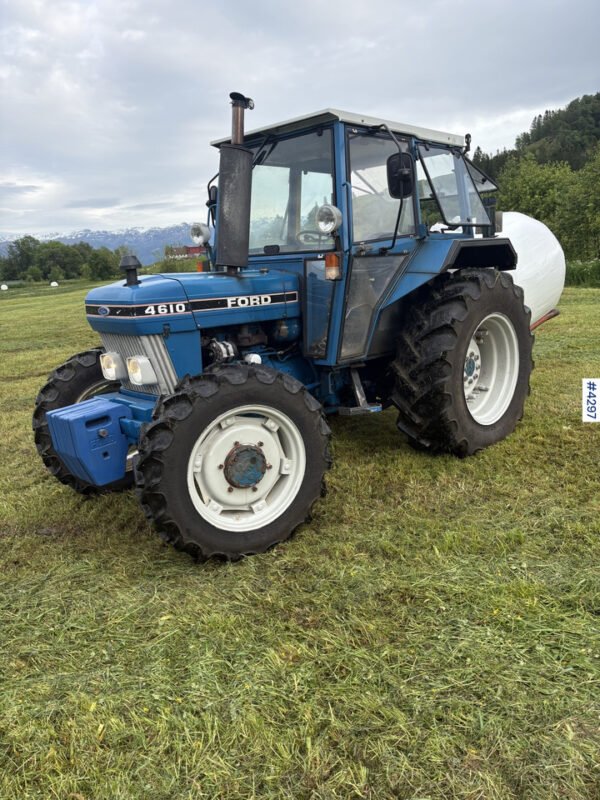

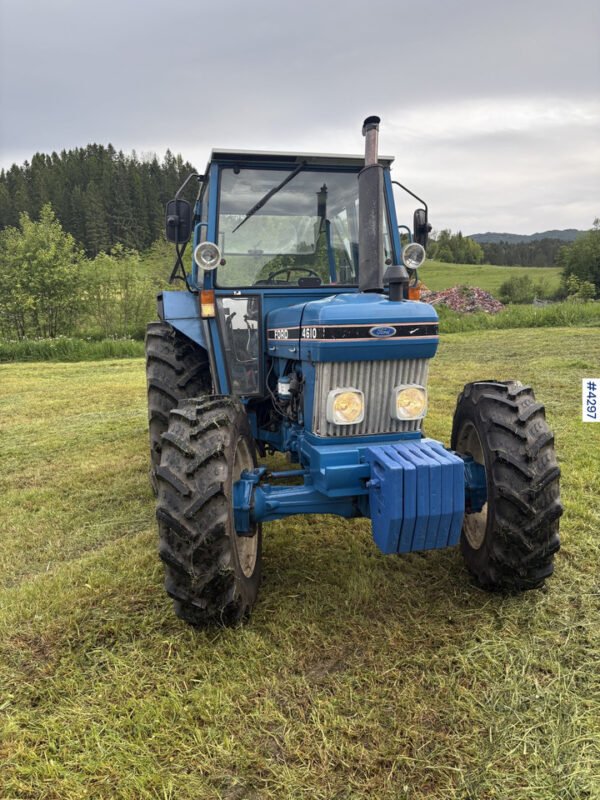

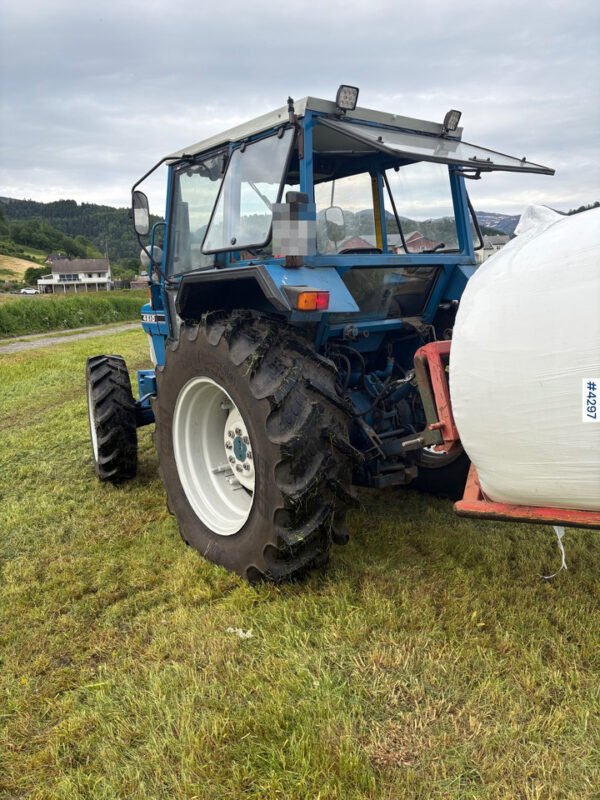

Ford 4610 4×4 1986 – Rugged Utility in a Compact Package
The **1986 Ford 4610 4×4** is a compact, dependable utility tractor, built to deliver performance in mixed-farm, loader, yard, and field tasks with minimal fuss. Equipped with a Ford 3.3-L, 3-cylinder diesel engine producing ~60 HP (≈ 44.7 kW) (≈ 63 HP gross) and full-time or selectable four-wheel drive, it offers solid grip and capability even in tougher ground. Independent rear 540 RPM PTO, a rear hitch lift capacity of ~1,397 kg (at 610 mm / 24″ behind link ends), and open-center hydraulics make it a useful tool for many jobs. Known for its mechanical simplicity, good parts availability, and ease of maintenance, the 4610 remains a favorite among users who want rugged utility without excessive complexity.
Key Specifications.
Ford 4610 4×4 1986
- Engine & Power: Ford 3.3-L 3-cylinder diesel; ~60 HP (≈ 44.7 kW) rated, ~63 HP gross.
- PTO (Rear): Independent 540 RPM PTO.
- Drive Type: 4×4 (selectable / full-time depending on variant), power steering, mechanical rear differential lock, front axle suitable for traction.
- Hydraulics: Open-center hydraulic system with single rear remote / 3-point hitch; pump flow ~32.2 L/min (~8.5 US gpm). Option for dual-pump in some variants (~53.4 L/min) if retrofitted.
- Rear Hitch Lift Capacity: ~1,397 kg at 24″ (610 mm) behind link ends.
- Fuel & Operational Capacities: Fuel tank ~60.6 L (≈ 16 gal). Cooling, oil, etc. typical for utility size.
- Transmission: 8-speed or 8-speed synchromesh options; some versions with dual ranges. Moderate forward & reverse gear spread.
- Weight & Dimensions: Operating weight ~2,180 kg (≈ 4,806 lb); wheelbase ~214 cm (84.5 in); rear tire size ~14.9-28 (for 2WD / 4WD); front ~7.50-16.
- Other Features: ROPS standard / optional cab in some markets; wet-disc rear brakes; optional 2WD/4WD front; differential locks; simple mechanical controls.
Why It’s Still Valuable.
Ford 4610 4×4 1986
- Mechanical Simplicity & Durability: Fewer electronics, easier to repair in remote areas; robust components.
- Good for Multiple Utility Tasks: Loader work, towing, PTO tasks (mowing, shredding, pumping), yard & farm duty.
- Part & Service Availability: Ford 4610 is common in many markets; spare parts tend to be relatively accessible.
- Fuel Efficiency vs Size: Smaller engine, less fuel consumption than high-horsepower machines for light to medium tasks.
- 4WD & Traction Option: Helps in muddy, uneven, or sloped ground; better versatility.
Best Use Cases.
Ford 4610 4×4 1986
- Light ploughing, harrowing, cultivating with small to medium implements.
- Loader work for feed, soil, materials, yard duties.
- PTO-driven equipment: mowers, pumps, shredders.
- Towing trailers, transport between farm and yard.
- Mixed operations or farms where rugged reliability is more useful than modern comfort.
Pre-Purchase / Inspection Checklist.
Ford 4610 4×4 1986
- Verify engine hours and service history: injector condition, cooling, compression.
- Test PTO engagement (540 rpm) and clutch condition.
- Examine 4WD system: front axle, diff locks, engagement.
- Hydraulics – test responsiveness, leaks, hitch function.

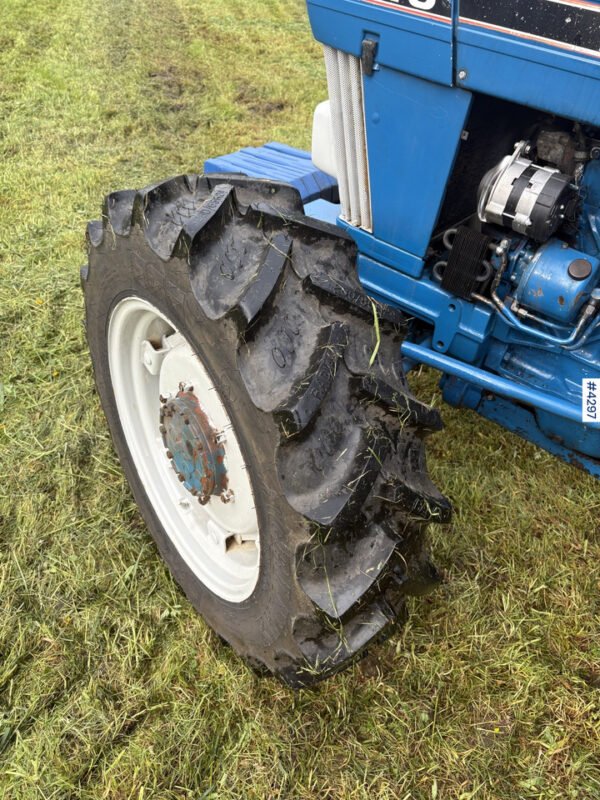

- Tire condition front & rear; matching tread, integrity, rims.
- Transmission – forward / reverse gears, synchro action if so equipped.
- Frame & structure: check welds, rust, ROPS / operator safety features.
- Brakes & steering: wet disc brakes condition, steering play.
Summary Table.
Ford 4610 4×4 1986
| Feature | Typical Spec |
|---|---|
| Make / Model | Ford 4610 4×4 (1986) |
| Rated Engine Power | ~60 HP (≈ 44.7 kW) |
| Gross HP | ~63 HP (≈ 47.0 kW) |
| PTO Power (Claimed) | ≈ 52 HP (≈ 38.8 kW) |
| Rear Hitch Lift (24″ / 610 mm) | ≈ 1,397 kg |
| Transmission | 8-speed / Synchromesh variants |
| Drive Type | Selectable 4WD |
| Operating Weight | ≈ 2,180 kg |
| Tire Sizes (Typical) | Rear ~14.9-28; Front ~7.50-16 |
Conclusion – Strong Choice for Utility, Simplicity & Farm Versatility.
Ford 4610 4×4 1986
The **1986 Ford 4610 4×4** remains a very usable utility tractor if condition is good. It’s particularly well suited to smaller farms, loaders, PTO tasks, and general utility work where reliability matters more than bells & whistles. A well maintained unit with sound engine, good hydraulic lift, functioning 4WD and decent tyres will serve many years more. Its value often lies in its simplicity and ability to be repaired locally. For many buyers, this model represents a high value-for-dollar option. Order Here.
