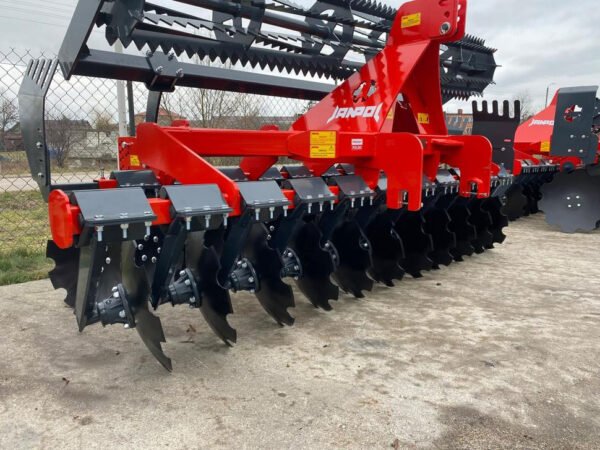

Janpol Medium COMPACT Disc Harrow – 3 m Working Width
The Janpol Medium “COMPACT” 3 m Disc Harrow is a high-performance tillage implement offered by Machinery Depot Pro. Designed for effective residue incorporation and seedbed preparation, it’s ideal for mid-size to large farms.
Key Features.
Janpol Medium COMPACT Disc Harrow
- Working width: 3.0 m

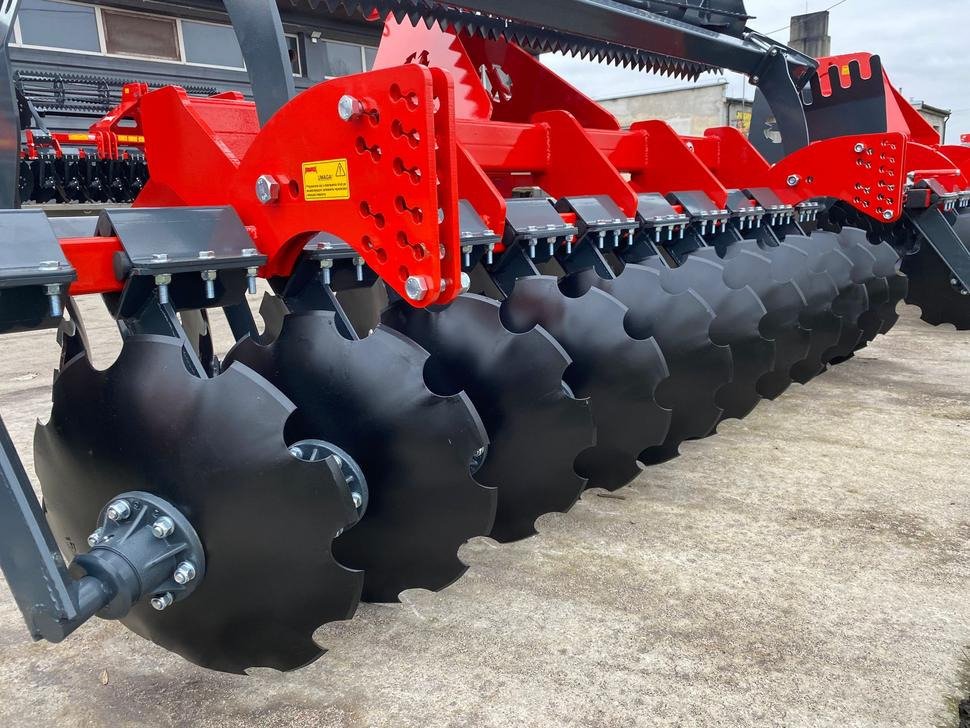

- Two rows of C-type discs, 510 mm diameter
- 24 discs in total
- Rubber shock absorbers (size 180 × 35) to protect discs and hubs
- Row spacing: 750 mm between disc rows
- Roller options: 420 mm tubular or blade roller standard
- Adjustable side shields for soil containment
- Maintenance-free hub option (for lower upkeep)
- Seeder-tractor power requirement: ~ 90–110 hp
Technical Specifications.
Janpol Medium COMPACT Disc Harrow
| Specification | Value |
|---|---|
| Working Width | 3.0 m |
| Disc Diameter | 510 mm (standard) |
| Number of Discs | 24 pcs |
| Power Requirement | 90–110 hp |
| Weight | 1,150 kg |
| Performance | 2.2 – 3.2 ha/h |
Benefits.
Janpol Medium COMPACT Disc Harrow
- Effective residue cutting and mixing with large C-type discs
- Shock absorbers protect disc hubs from jolts and reduce wear
- Adjustable side shields help prevent soil spillage and improve field cleanliness
- Light-to-medium power requirement makes it accessible for many tractors
- Choice of rollers for different soil conditions and levels of compaction
Applications.
Janpol Medium COMPACT Disc Harrow
- Primary and secondary tillage
- Seedbed preparation before planting
- Breakdown of crop residues
- Field leveling and soil mixing
Operation & Maintenance Tips. Janpol Medium COMPACT Disc Harrow
- Ensure correct tractor horsepower is selected to match the 90–110 hp requirement.
- Regularly check shock absorbers and disc hubs for wear.
- Keep side shields adjusted to minimize soil splash during operation.
- Choose the correct roller (tubular or blade) depending on soil texture and moisture.
- Lubricate pivot points and bearings as needed, especially after long or heavy use.
Ordering & Pricing. Janpol Medium COMPACT Disc Harrow
To order the Janpol Medium “COMPACT” 3 m Disc Harrow, contact SA Home Builder Store. We’ll provide a personalized quote, including delivery to your farm.
