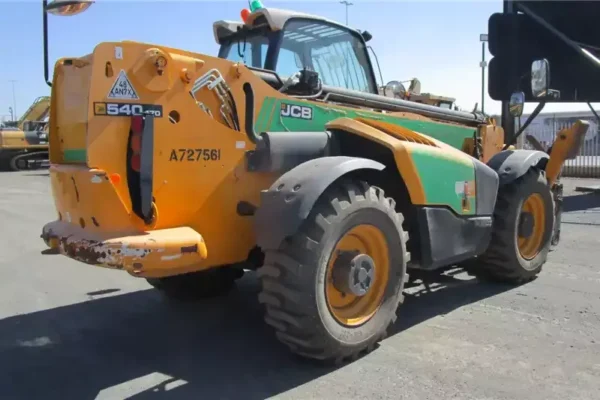

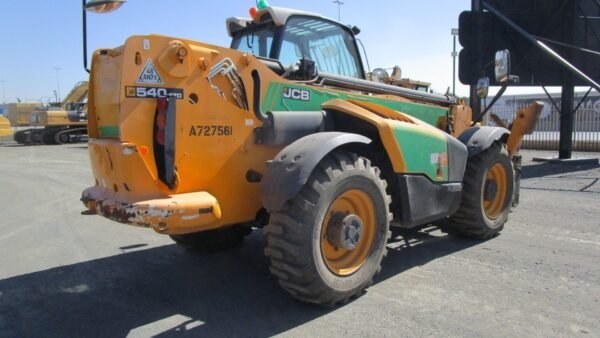

2016 JCB 540‑170 Telehandler – 4 t Capacity, 16.7 m Lift, Fast Cycle Times



Overview

The 2016 JCB 540‑170 Telehandler  is a versatile telescopic handler engineered for construction, logistics, and high-reach material handling. Equipped with a JCB EcoMAX T4i/Tier 4i engine, it delivers up to ~100 hp (75 kW) and ~425 Nm torque. With a 4 t lift capacity at 500 mm center-of-gravity and a maximum lift height of 16.7 m, this Loadall balances power, reach, and efficient hydraulics for fast cycle times and operator precision. Operating weight is approximately 12.06 t.

Key Features & Benefits 2016 JCB 540‑170 Telehandler

• Lift & Reach Capabilities: Handles up to 4 t at the centre-of-gravity, lifts up to 2.5 t at full height (16.7 m), and reaches out to 12.5 m horizontally.
• EcoMAX Engine Efficiency: JCB’s in-house EcoMAX engine provides responsive low-rev torque with fuel savings compared to previous models.
• Fast Hydraulics: Cycle operations like extend (~18.3 s), crowd (~4.6 s), dump (~4.2 s), and lower (~23‑24 s) offer productivity on the move.
• Four Steering Modes: Instant switching between 2WD, 4WD, crab, and coordinated steer modes allows tight manoeuvrability across site.
• Load Retention: Parallel lift mechanism keeps forks level even while extending, ensuring safe handling at height.
• Operator Environment: High‑resolution TFT display, seat-interlock safety, remote management through telematics, and robust safety interlocks included.

Technical Specifications 2016 JCB 540‑170 Telehandler

• Rated Lift Capacity: 4,000 kg at 500 mm COG
• Capacity at Full Lift Height: ~2,500 kg at 16.7 m
• Maximum Reach: ~12.5 m
• Lift Height: 16.7 m (54.8 ft)
• Operating Weight: ~12,060 kg (26,588 lb)
• Engine Power: 100 hp (75 kW) gross @ 2,200 rpm; torque ~425 Nm @1,200 rpm
• Transmission: 4‑speed power‑shift powershift, max forward speed ~25 km/h (20 mph)
• Hydraulic Pump Flow: ~162 L/min (43 gal/min); system relief ~260 bar (3,770 psi)
• Dimensions: Length ~6.36 m; width ~2.44 m; height ~2.69 m; turning radius ~4.1 m

Best Applications

• Construction and site logistics needing high lift height
• Loading/unloading materials at elevation
• Warehouse stacking or silage handling
• Rental fleets requiring versatility, fast hydraulic cycles, and manageable upkeep

User Feedback & Reliability Notes

While JCB Loadalls are praised for lift reach and productivity, some Reddit users comment on reliability and parts availability challenges:

> “I’ve heard to avoid JCB due to parts availability.” :contentReference[oaicite:40]{index=40}
> “Random start‑failure issues requiring intermittent joystick or wiring resets.” :contentReference[oaicite:41]{index=41}

These remarks highlight the importance of dealer support and preventative maintenance, especially in regions with fewer JCB service centers.

Maintenance & Operational Advice

Ensure daily checks of electrical grounding and joystick functionality, keep cooling and filter systems clean, and schedule regular hydraulic system servicing. Having access to the operator’s manual is essential for safe inspection and correct lift-mode interlocks. :contentReference[oaicite:42]{index=42}

• JCB 540-170 telehandler side view with boom fully extended
• Operator cabin interior view with digital display and lever controls
• Mobile telehandler lifting pallet to elevated platform on construction site

📞 Call to Action

Looking for a telehandler offering high lift, rapid cycles, and exceptional torque performance? Contact us today for pricing, finance plans, attachments options, or to arrange a site inspection of this 2016 JCB 540‑170 Telehandler.
