2025 **Liugong CLG835H Cummins Wheel Loader** – 139 hp, ~11 t Class, Reliable Productivity
Product Overview
The **Liugong CLG835H** (2025 Cummins model) is a rugged and efficient **medium‑sized wheel loader**, designed for reliability in construction, agriculture, and materials handling. Powered by the **Cummins QSB5.9‑C130 turbocharged engine**, it delivers **89 kW (119 hp net)** @ 2,200 rpm, compliant with **Tier III / Stage III emissions standards**. With an **operating weight around 10,450 kg** and a standard **2.0 m³ bucket**, it offers balanced productivity and low operating cost.
Key Features & Benefits
- Cummins Powertrain: QSB5.9‑C130 engine delivers robust torque (~690 Nm) at low RPM ranges, enhancing fuel economy and lift capacity.
- Efficient Hydraulics: Dual‑pump confluence system ensures steering receives priority flow, reducing energy loss under load.
- Comfort & Visibility: Spacious ROPS/FOPS cab with panoramic windows, air‑suspension seat, joystick controls, and optional rear-view camera for operator comfort and safety.
- Robust Design: 40° articulation, limited‑slip differential, and heavy-duty chassis frame deliver traction and durability in tough conditions.
- Cycle Efficiency: Lift‑dump cycle time ~9.3 seconds ensures high throughput during repetitive loading tasks.
- Easy Maintenance: Wide engine hood and logical service layout provide quick access to filters, radiator, and fluid ports—for minimal downtime.
Technical Specifications
- Net Power: 89 kW (119 hp/121 ps) @ 2,200 rpm; Gross ~97 kW (130 hp).
- Operating Weight: ~10,454 kg (23,050 lb).
- Bucket Capacity: Standard ~2.0 m³, optional up to 3.0 m³.
- Breakout Force: ~87 kN standard.
- Tipping Load (Full Turn): ~6,640 kg.
- Dump Height / Reach: ~2,855 mm clearance; ~1,109 mm reach at full discharge.
- Travel Speed: Up to ~38 km/h forward, ~23 km/h reverse.
- Dimensions (L×W×H): ~7,280 × 2,295 × 3,340 mm; turning radius ~5.41 m.
- Cycle Time: Full lift‑dump ~9.3 s.
Ideal Applications
- Construction site material loading
- Agricultural handling and feedstock transport
- Municipal work and ground‑support operations
- Rental fleets needing durable mid-size loaders
User & Brand Insight
Liugong is recognized as the **world’s largest wheel loader manufacturer** by volume, and its collaboration with Cummins and ZF enhances reliability.([turn0search20]) While user feedback highlights limited parts availability in some regions, the Cummins‑powered 835H offers a compelling value when proper support is available.
Maintenance & Operational Tips
Routine servicing benefits from accessible service points and reversible cooling fan (where fitted). Ensure regular Greasing of articulation points, oil filter replacements, and radiator cleaning. Confirm local dealer support for parts and after‑sales service before procurement.

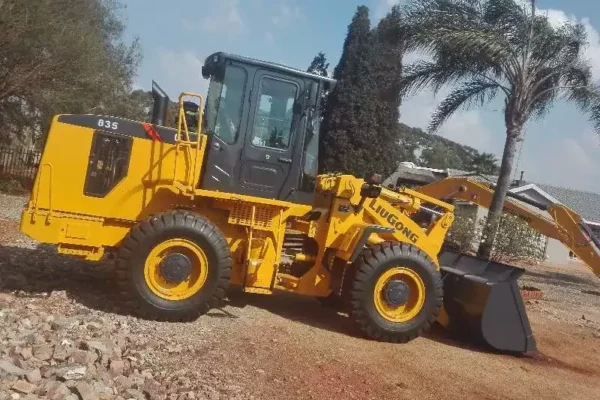

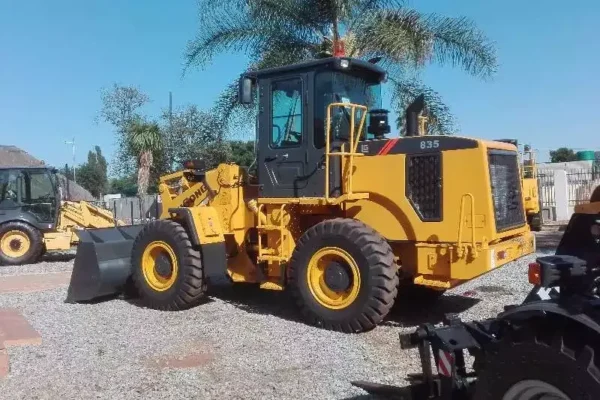

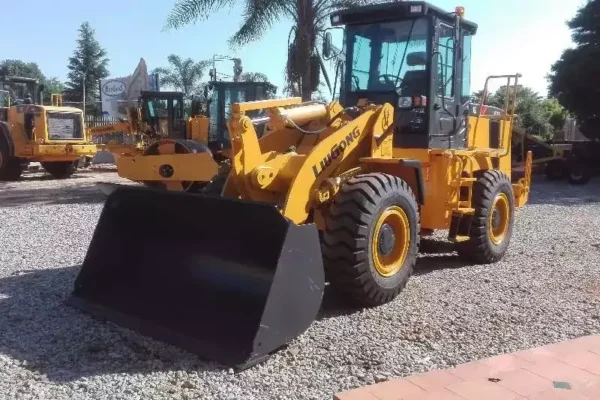

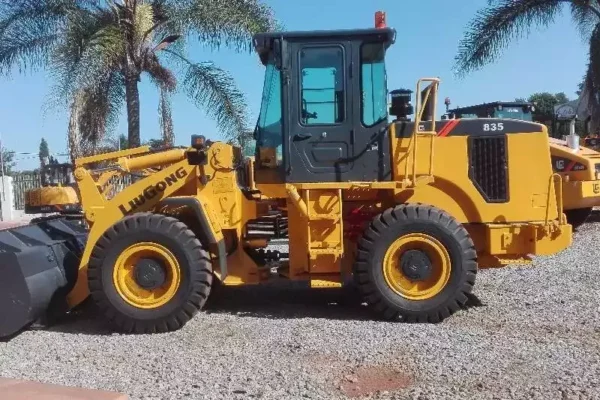

- Liugong CLG835H loader side view lifting bucket
- Operator inside cab with joystick and comfortable seat
- Liugong 835H unloading soil or gravel at construction site
📞 Call to Action
Looking for a durable and cost-effective loader with Cummins power? Contact us today for price, finance options, bucket configurations, or to arrange a demonstration of the **Liugong CLG835H Wheel Loader (2025 model)**.
